Description
■ Description

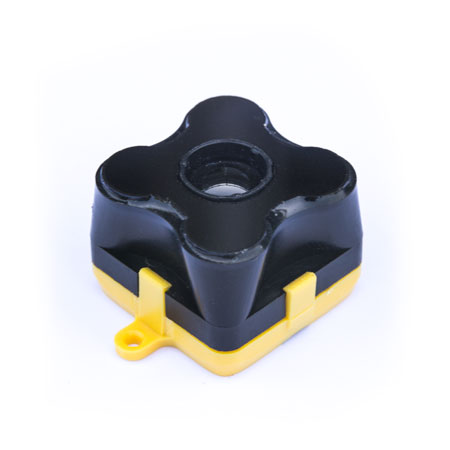

Track motion, sense depth, monitor and count: people or items thanks to an output of 64 high-speed distance readings. Developed for indoor applications, TeraRanger Evo 64px provides a matrix of 8×8 pixels over a 15 degree FOV, with a maximum range up to 5m.
- 64 pixel 3D depth map
- Compact and lightweight design (from 12 grams)
- Capture fast-moving objects (up to 130 fps sampling rates)
- Starts measuring from just 10 centimeters
- Immune to low light and darkness
- Eye-safe in all conditions
- ROS ready
■ Applications
■ Please note:

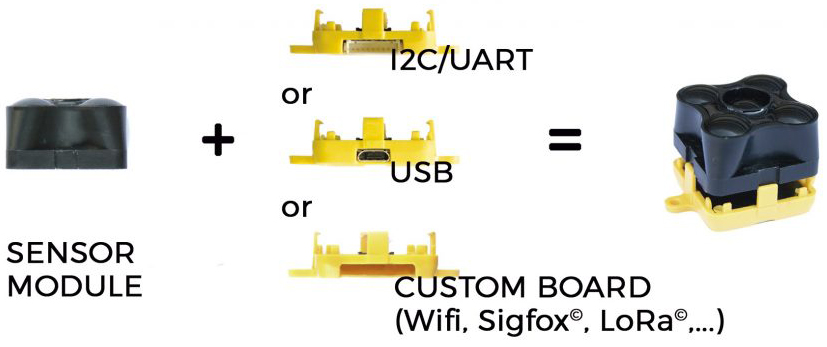

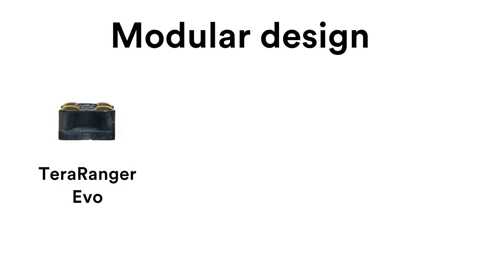

To function, each TeraRanger Evo requires a yellow backboard for USB or I2C/UART interface.
■ Comparison
| Evo 60m | Evo 600Hz | Evo 3m | Evo 64px | |
| Principle | Infrared Time-of-Flight | |||
| Resolution | 1 pixel | 1 pixel | 1 pixel | 64 pixels (8×8) |
| Range | 0.5-60m | 0.75-8m | 0.1-3m | 0.1-5m |
| Update Rate | Up to 240Hz | Fixed 600Hz | Fixed 100Hz | Up to 130fps |
| Accuracy | ±4cm in the first 14m, 1.5% above 14m | ±12cm | ±2cm | ± 5cm 0.1m to 1m ± 10cm 1m to 3m ± 15cm > 3m+ |
| Weight | 9g | 9g | 9g | 12g |
| FoV | Approx. 2° | Approx. 2° | Approx. 2° | Approx. 15° |
| Interfaces | UART, I2C, USB | UART, I2C, USB | UART, I2C, USB | UART, USB |
| Compatible w/ Hub Evo | O | O | O | Pending |
■ Package Contents
|
Description |
Quantity |
| TeraRanger Evo 64px |
1 |
