Description
■ Description

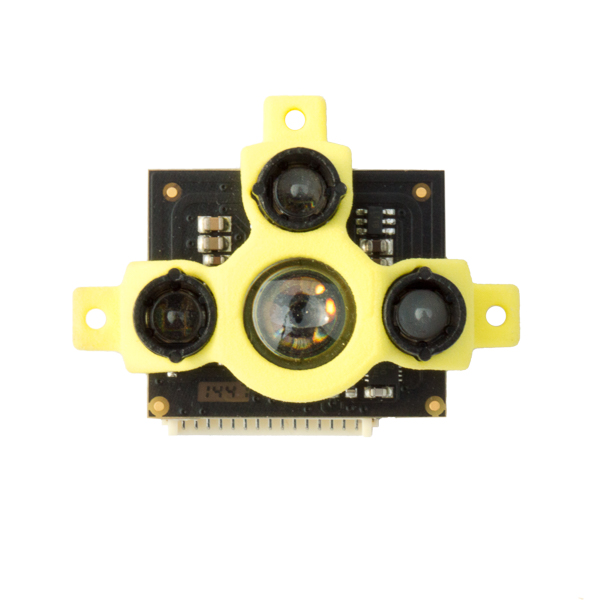

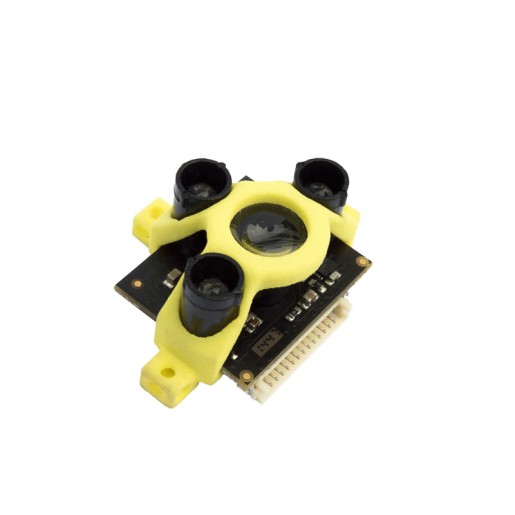

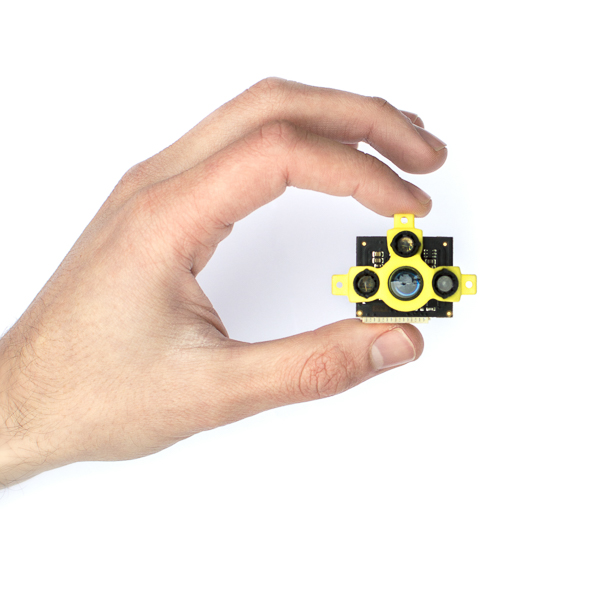

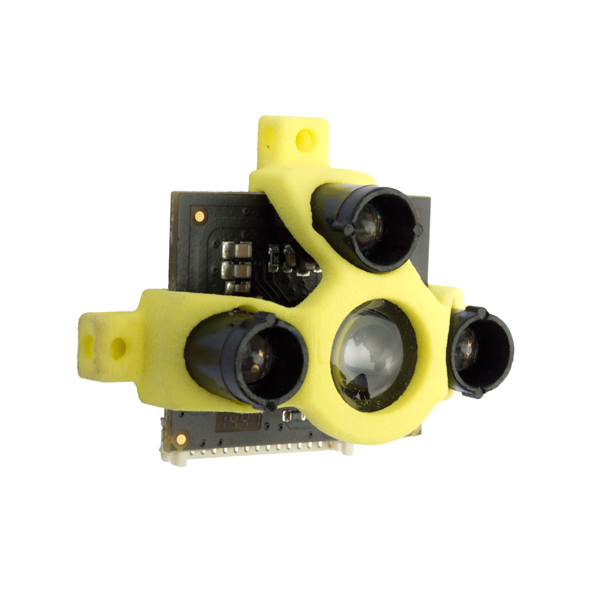

The TeraRanger One Type A (Spider) is the most advanced distance sensor for robotics. For crosstalk avoidance in multiple robot environments two versions of the sensor are available, Type A and Type B, which can operate simultaneously without affecting each other’s reading. Sensors A and B performance are very similar. We prefer A for indoor environments and B for outdoor as the latter is more stable in direct sunlight.
- Based on infrared Time-of-Flight (ToF) technology
- Low power consumption
- Suitable for high volume usage
- Update Rate Up to 1000Hz
- Range Up to 14m
- Weight 8 grams
- Field of view Approx. 3°
■ TeraRanger One Applications
■ Which Version Should You Get?
TeraRanger One distance sensing platform comes in 2 versions; Type A and Type B sensor performance are very similar.
- Type A – we prefer sensors from this type for indoor environments.
- Type B – we advise sensors from this type for outdoor use as it is more stable in strong sunlight.
For crosstalk avoidance in multiple robot environments, two versions of the sensor are available, type A and type B, which can operate simultaneously without affecting each other’s reading.
■ Package Contents
Description |
Quantity |
TeraRanger One sensor |
1 |
Open-ended cable for power and data transfer |
1 |
