Description
* TeraRanger Evo sensors require a USB or I2C/UART backboard for communication.
■ Description

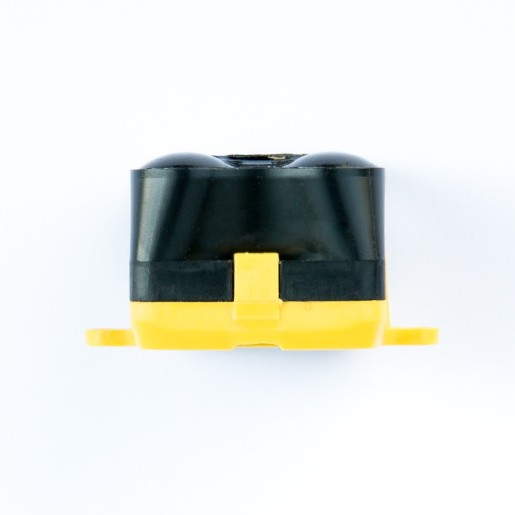

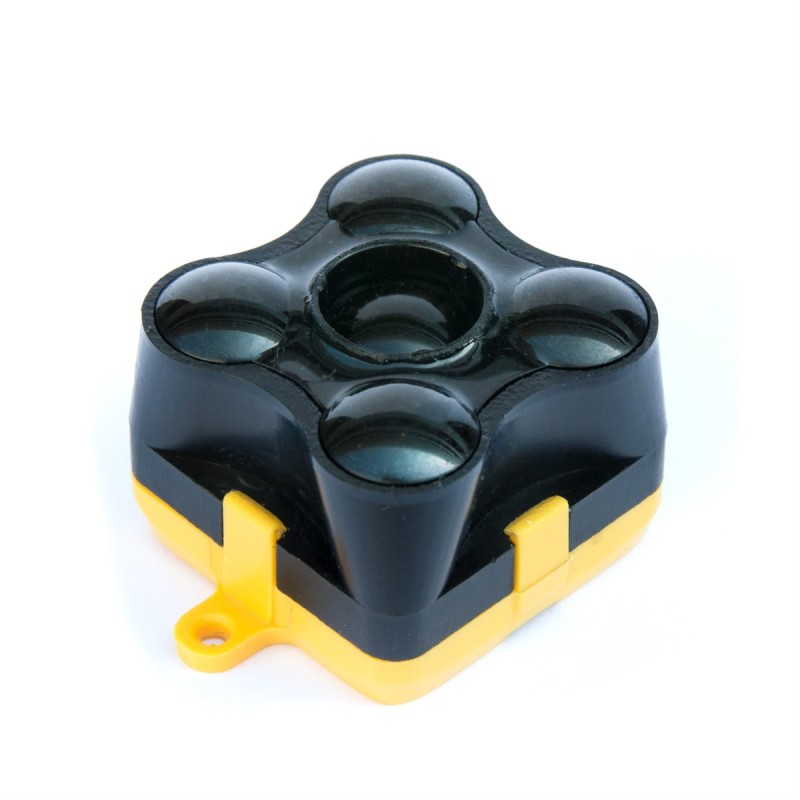

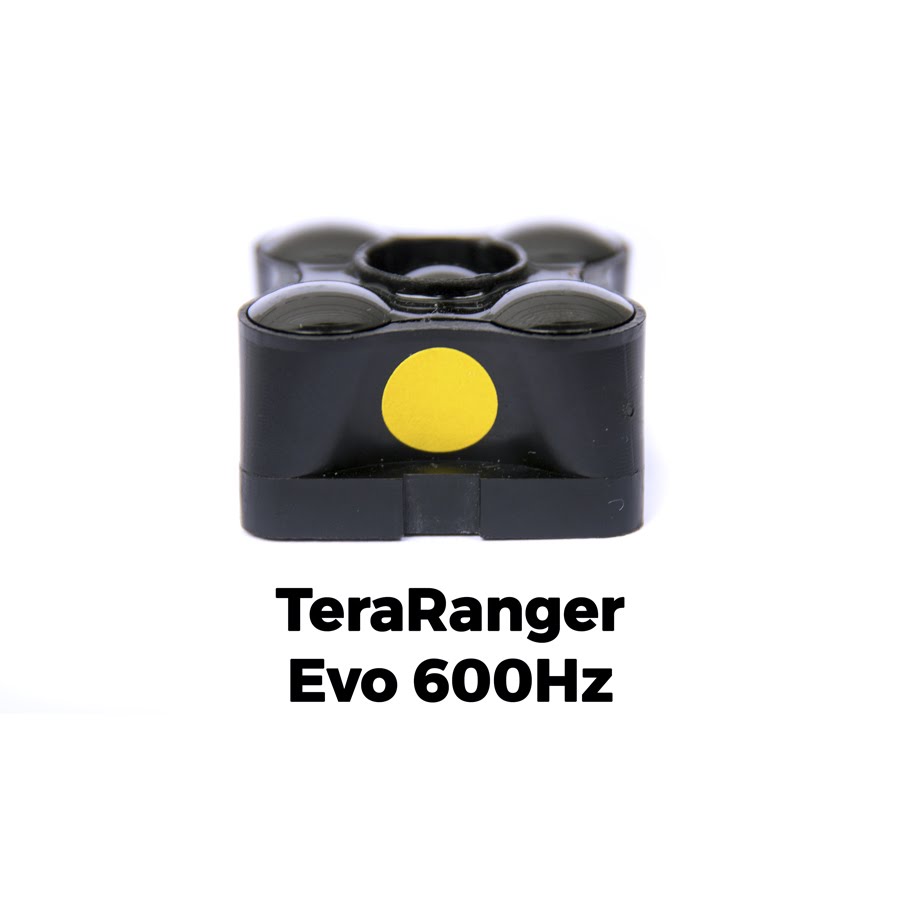

TeraRanger Evo 600Hz reacts faster and detects objects with greater assurance thanks to a fixed update rate of 600 readings per second.
- Ideal for fast-moving robotics, smart city and industry 4.0 applications
- Fast and reliable – fixed update rate of 600Hz

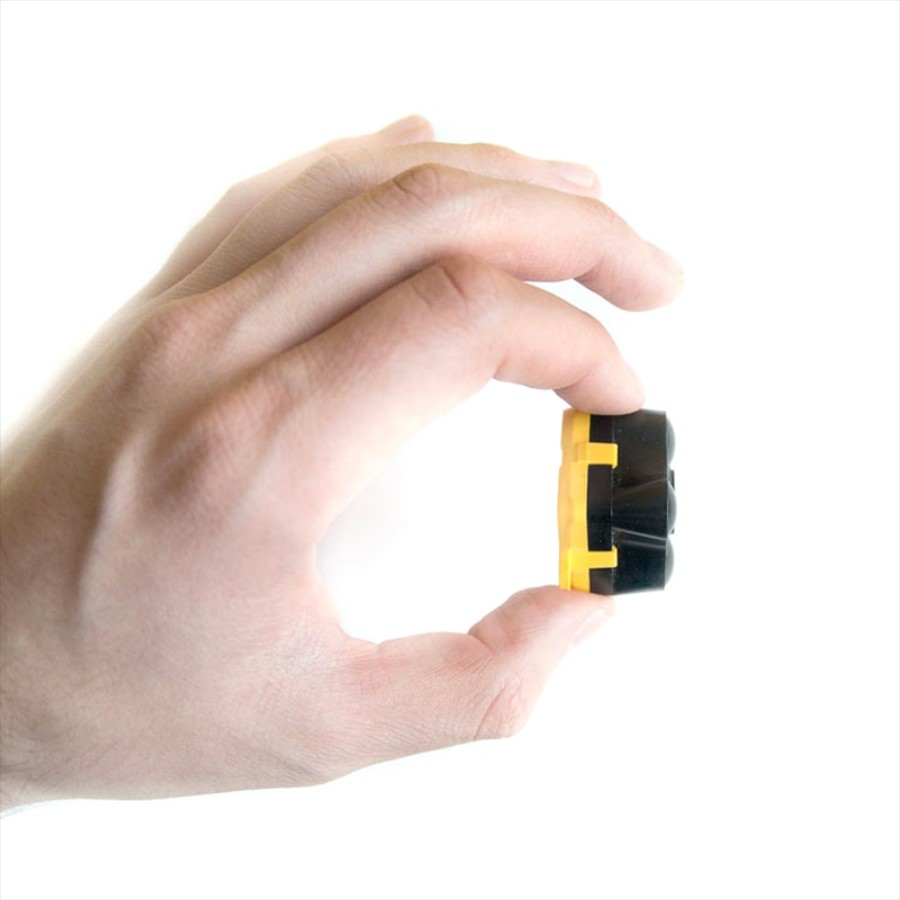

- Seamless integration – small and lightweight (from 9g)
- 2° Field of View – measures the distance of an area
- Modular design – options for custom interfaces
- ROS ready and compatible with popular drone flight controllers
- Eye safe and CE certified
■ Please note:
Each TeraRanger Evo requires a yellow backboard for USB or I2C/UART interface.
■ Teraranger Evo Comparison
| Evo 600Hz | Evo 3m | Evo 15m | Evo 40m | Evo 60m | Evo 64px | |
| Principle | Infrared Time-of-Flight | |||||
| Resolution | 1 pixel | 64 pixels (8×8) | ||||
| Range | 0.75-8m | 0.1-3m | 0.5-15m | 0.5-40m | 0.5-60m | 0.1-5m |
| Update Rate | Fixed 600Hz | Fixed 100Hz | Up to 240Hz | Up to 130fps | ||
| Accuracy | ±12cm | ±2cm | ±4cm in the first 14m 1.5% above 14m |
± 5cm 0.1m to 1m ± 10cm 1m to 3m ± 15cm > 3m+ |
||
| Weight | Sensor 9g + Backboard 3g | 12g + 3g | ||||
| FoV | Approx. 2° | Approx. 15° | ||||
| Interfaces | USB, UART/I2C | |||||
| Compatible w/ Hub Evo | X | 0 | X | |||
■ Package Contents
|
Description |
Quantity |
| TeraRanger Evo 600Hz |
1 |
