Description
■ Description
The modular, high-performance and easy-to-use Time-of-Flight sensing kit – ideal for research and development purposes.

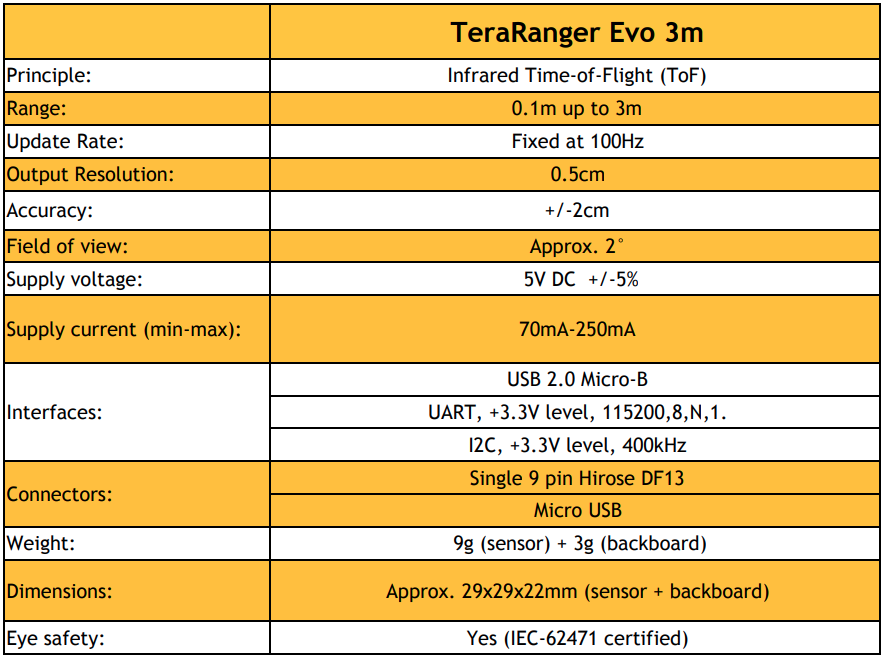

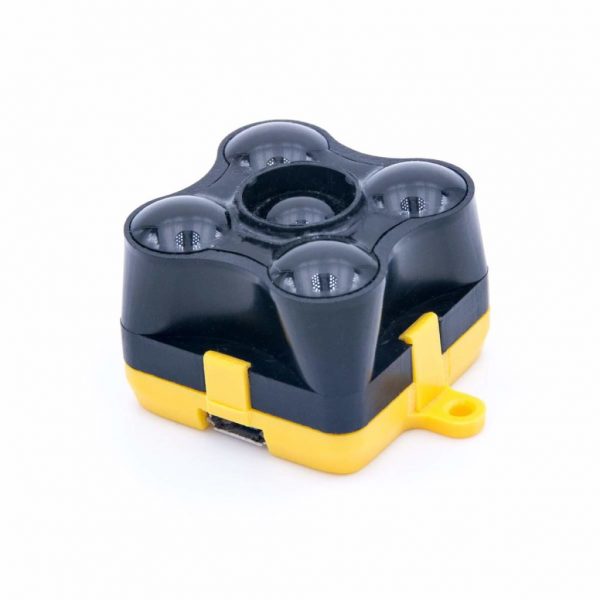

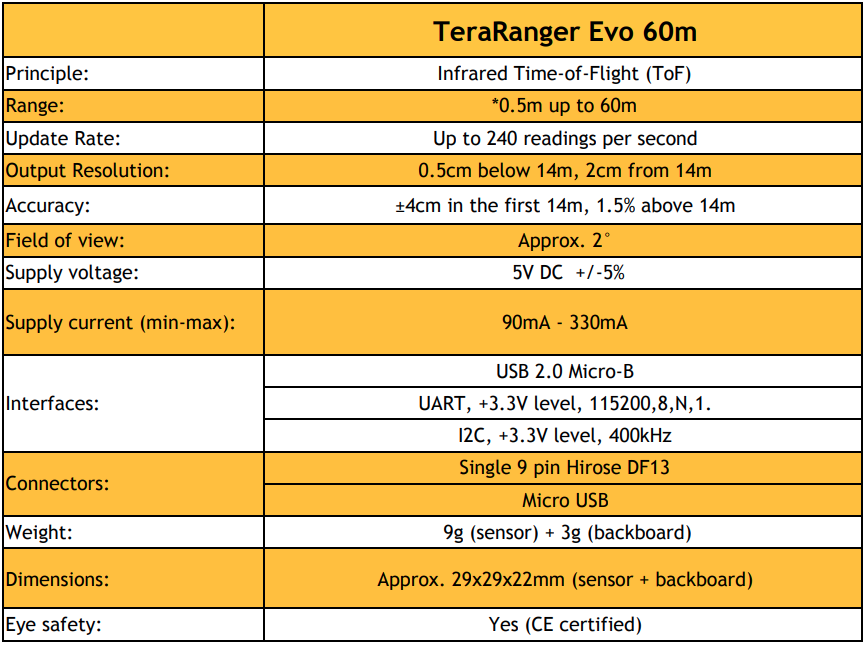

The kit is built on our modular Evo sensor family and includes 3 different Time-of-Flight sensor modules: TeraRanger Evo 60m (long range), TeraRanger Evo 3m (short range) and TeraRanger Evo 64px (8×8 depth resolution for movement detection).
The modular two-part design of Evo sensors allows quick testing and prototyping with a variety of interfaces including USB, UART, and I2C. Just clip-on your preferred interface backboard to any Evo sensor. No additional calibration is required as the sensors stream factory calibrated distance values in millimeters, out of the box.
■ Key Product Features
- 3 Time-of-Flight sensors and 4 interfaces in one kit
- Great value for money – save 19% from RRP
- Compact & lightweight design
- USB, I2C and UART clip on interfaces
- Compatible with ROS, Pixhawk, Arduino, Raspberry Pi, Odroid, etc.
- Factory calibrated distance data in millimeters
- Free GUI downloads for quick tests on a PC
■ ToF Sensor Potential Applications

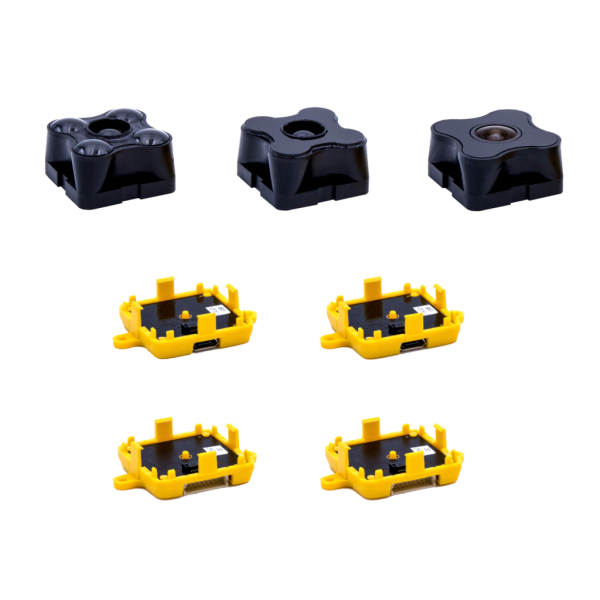

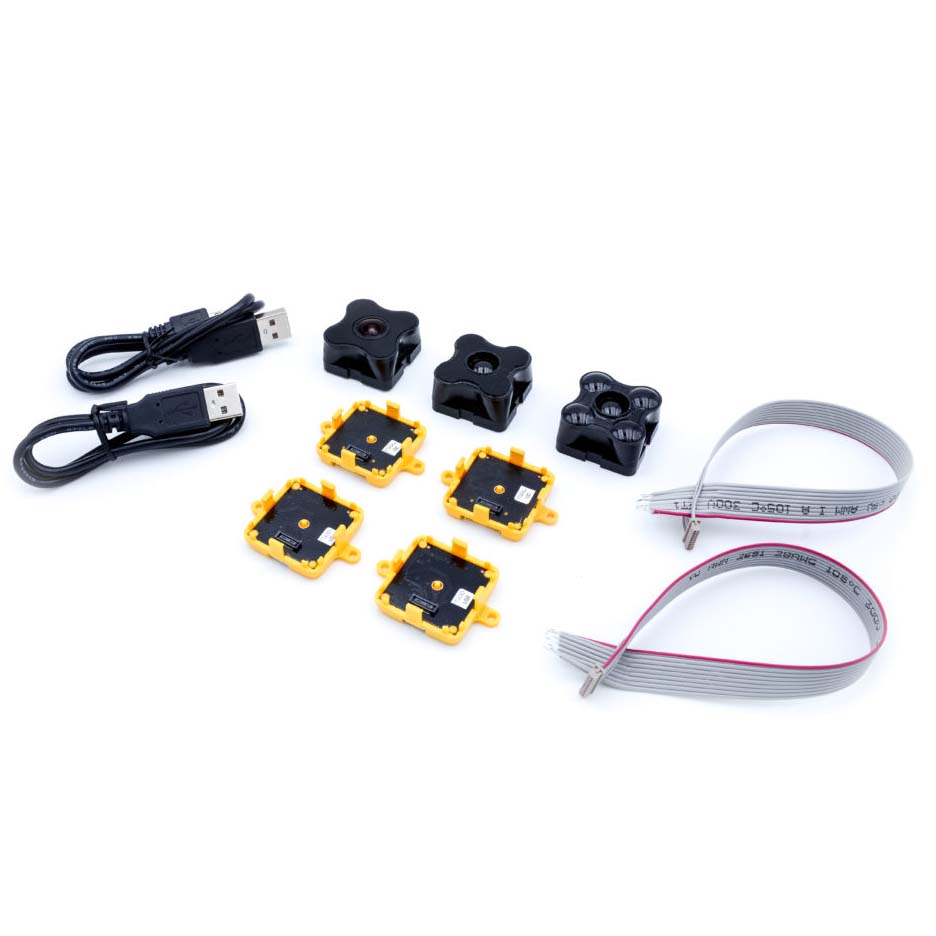

■ What’s in the Box?
| Item | Description | Quantity |
| Evo 60m | long range single pixel ToF distance sensor | 1 |

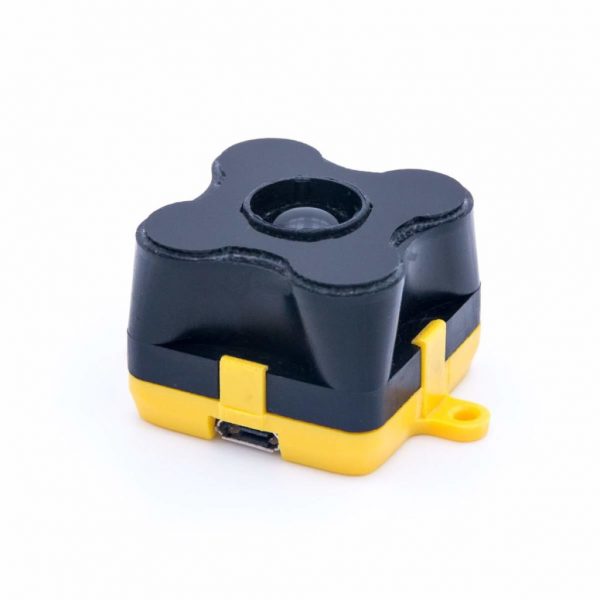

| Evo 3m | short range single pixel ToF distance sensor | 1 |

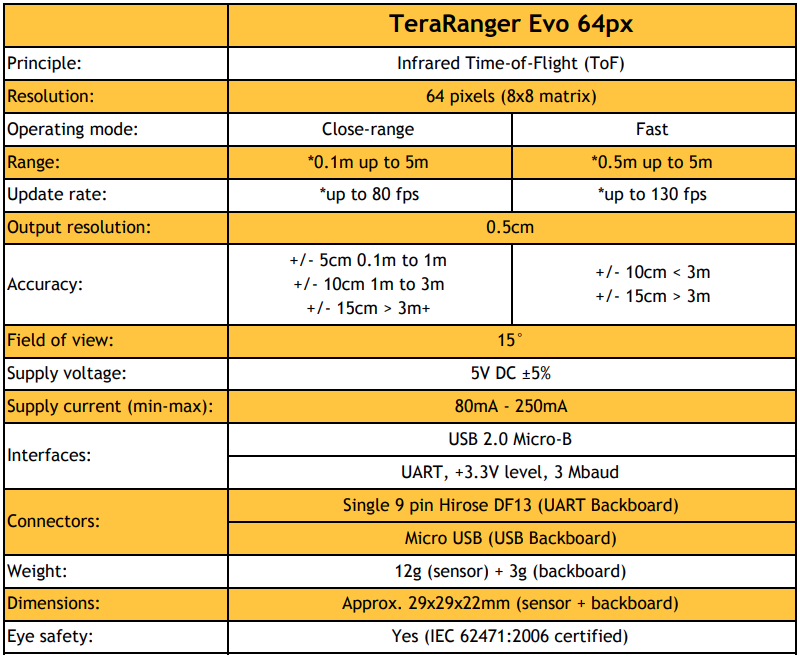

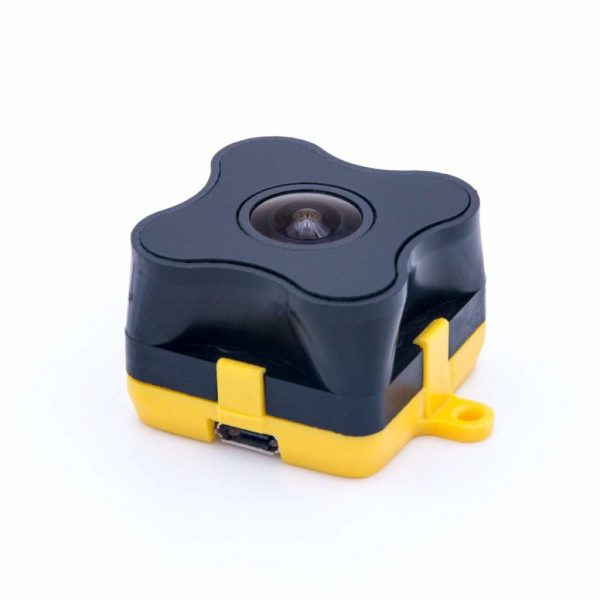

| Evo 64px | 8×8 pixel ToF depth sensor for movement detection | 1 |
| USB interface board | yellow backboard for USB interface | 2 |
| USB 2.0 Micro cable | 50cm cable for USB interface board | 2 |
| UART/I2C interface board | yellow backboard for UART/I2C interface | 2 |
| UART/I2C cable | 22cm cable for UART/I2C interface board | 2 |
■ Plug & Play Compatibility
The unique modular design of Evo sensors enables easy plug and play integration into various platforms, including ROS, Pixhawk, Raspberry Pi, Arduino, Odroid and more!
Connect the Evo sensors to a PC and perform quick tests, using the USB backboard and cable. Use the graphical user interface to stream the sensors’ distance data in millimeters. You can then use this output to build your own applications.
