Description
■ Description

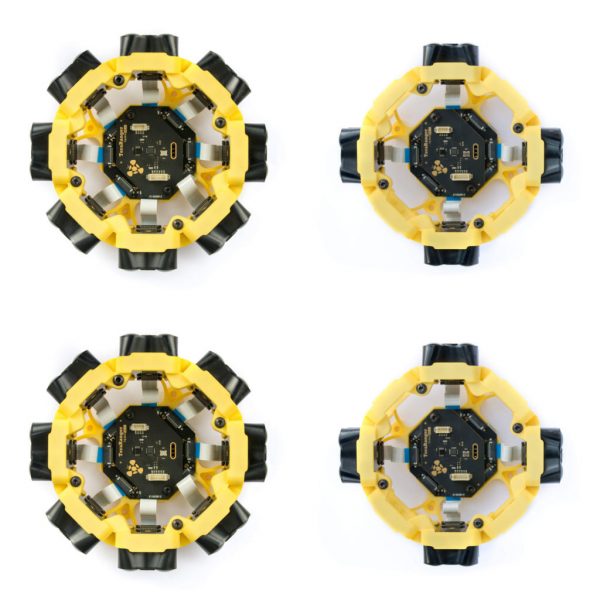

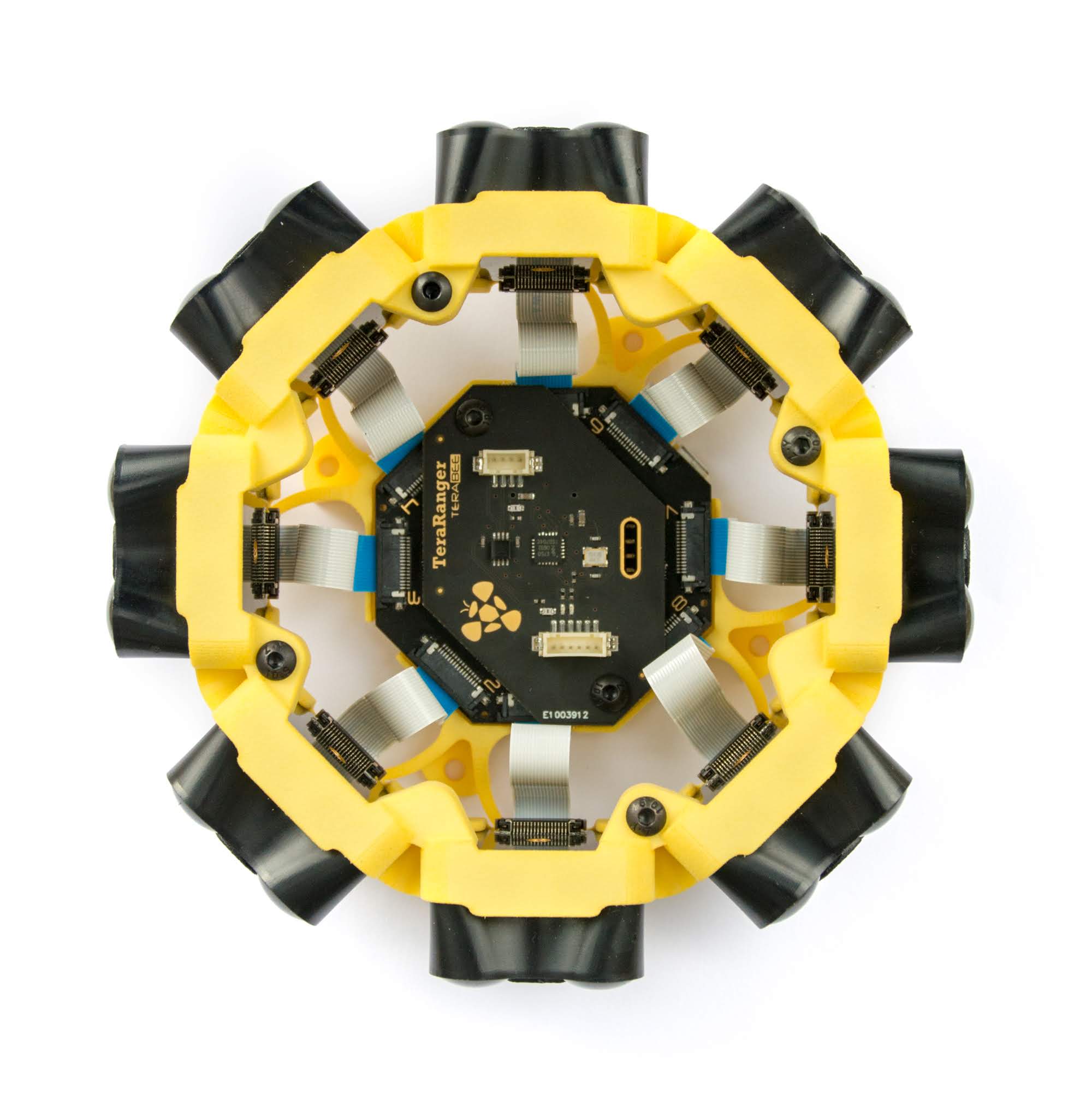

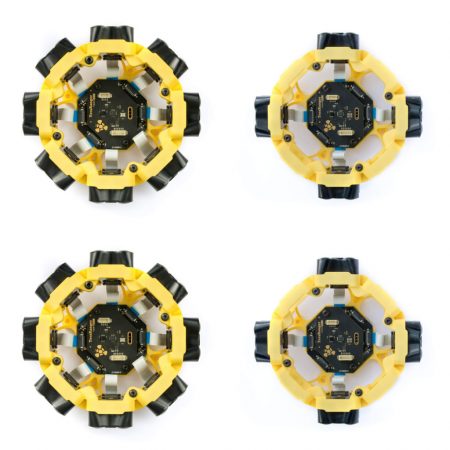

TeraRanger Tower Evo is a solid-state LiDAR system. With zero moving parts, the product offers increased robustness and silent operation, while the compact and lightweight design makes it ideal for fast-moving and lightweight robotic applications, both on the ground and airborne! TeraRanger Tower Evo is compatible with Pixhawk (APM) flight controllers. Choose between 4 versions with varying performance, including 4 or 8 detection zones.

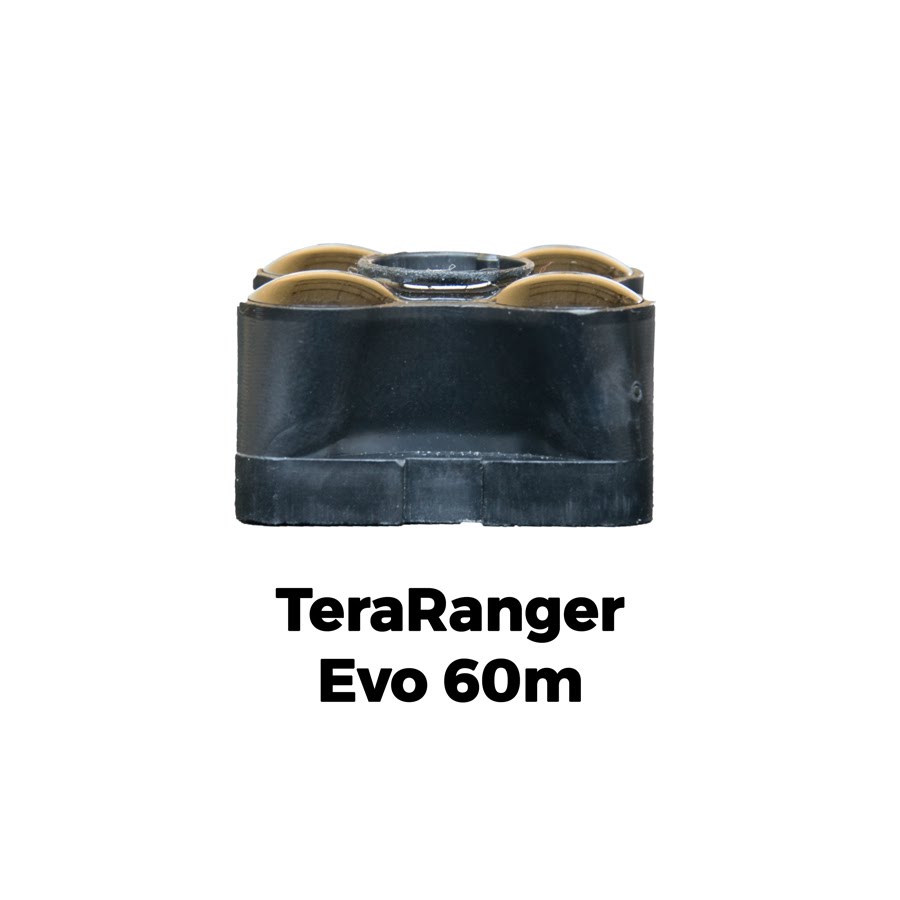

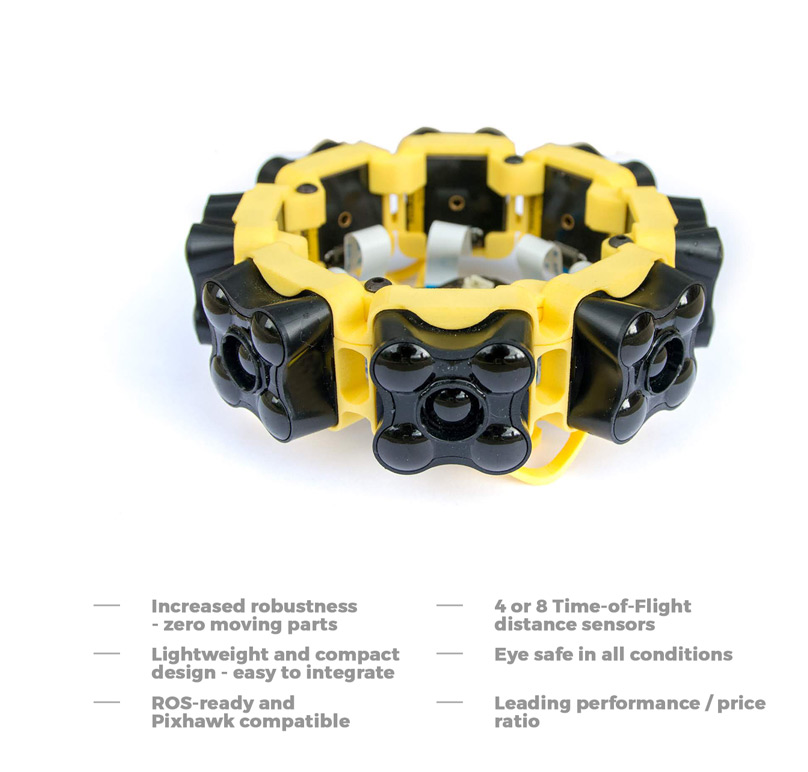

- Solid-state LIDAR system with 8 TeraRanger Evo 60m sensors monitored simultaneously at high-speeds
- Offers increased robustness and silent operation
- Ideal for fast-moving and lightweight robotic applications, both on ground and airborne
- Eye safe in all conditions, giving you the freedom to place and use the system wherever needed

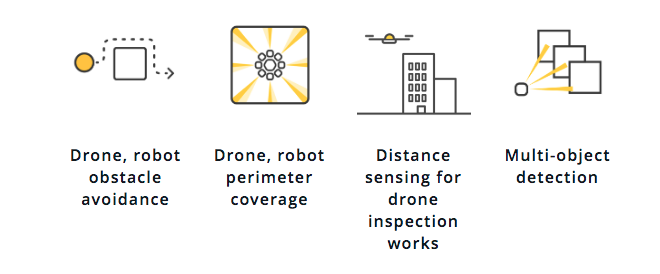

■ Solid-state LiDAR Applications

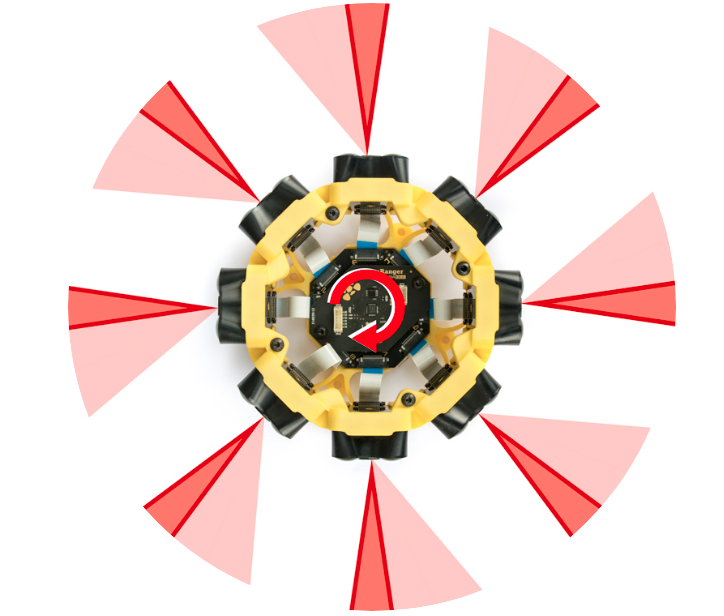

■ Simultaneous Monitoring of Multiple Axes
When mounted on a ground or airborne robot, the simultaneous data point acquisition of 4 or 8 axes at high speed, coupled to the natural movement of the robot (both translations and rotations), ensures the capture of features and data points around the robot, with similar output to the laser scanners typically used in SLAM operations.
■ Tower Evo 600Hz vs Tower Evo 60m
| Tower Evo 600Hz | Tower Evo 60m | |
| Nº of sensors | 4 or 8 sensors (2 configurations) | |
| Range | 0.75-8m | 0.5-60m |
| Update Rate | Fixed at 600Hz per sensor (4 sensors) Fixed at 320Hz per sensor (8 sensors) |
Up to 240Hz per sensor (4 sensors) Up to 120Hz per sensor (8 sensors) |
| Accuracy | ±12cm | ±4cm |
| Resolution | 0.5cm | 0.5cm below 14m, 2cm from 14m |

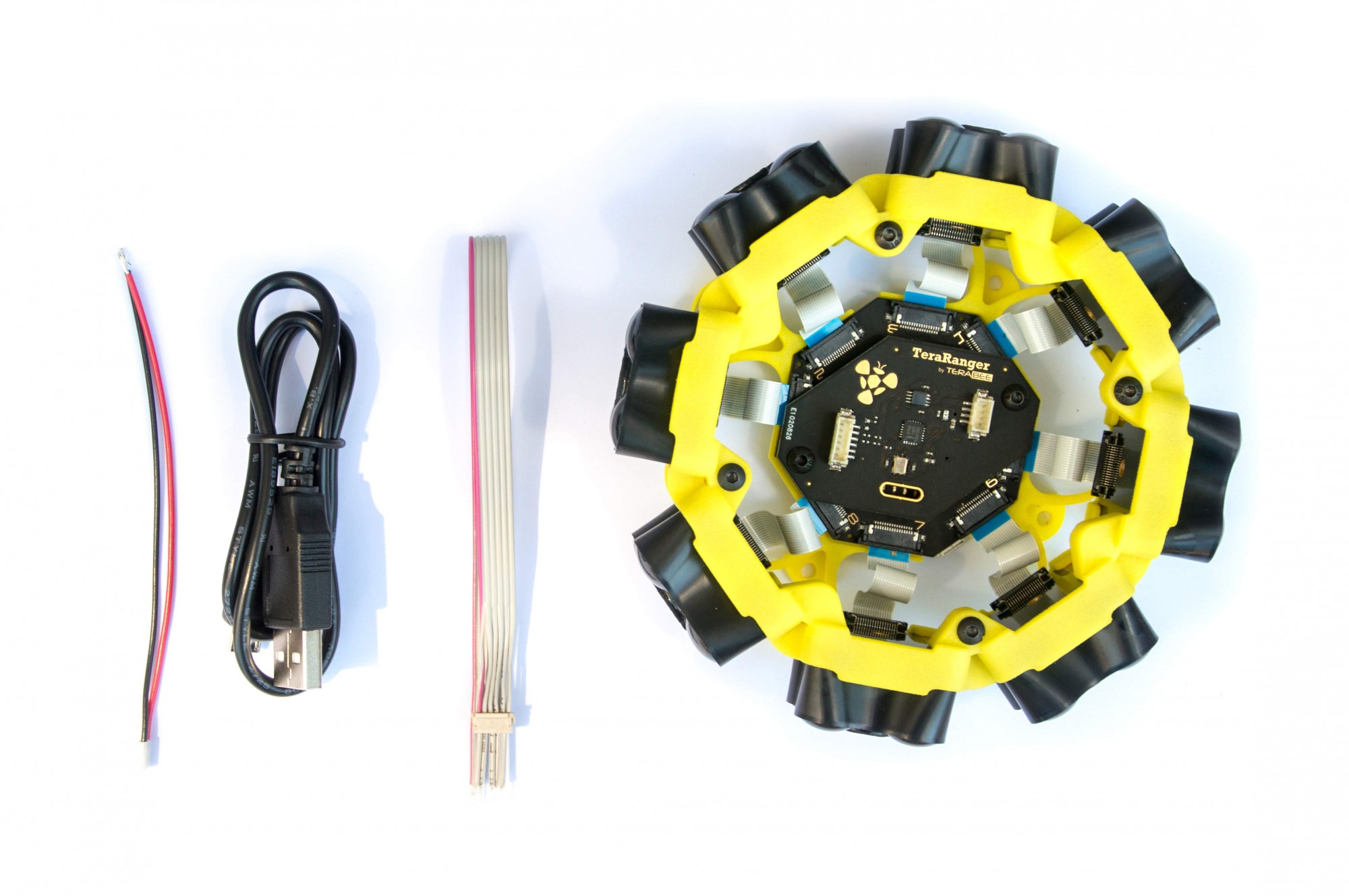

■ Package Contents
|
Description |
Quantity |
| TeraRanger Tower Evo 60m 8-sensor version | 1 |
| DF13 6P to open-ended cable | 1 |
| Power cable | 1 |
| USB 2.0 Micro-B | 1 |
