Description
■ Description

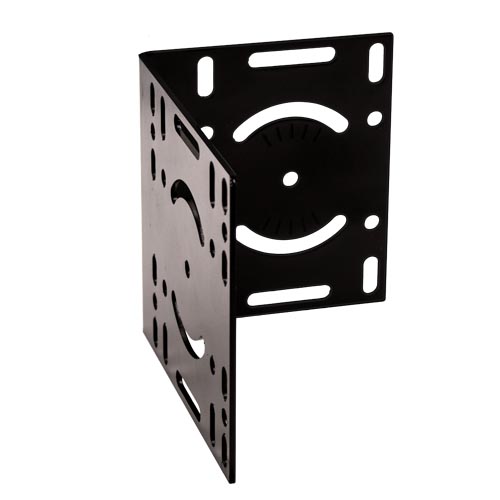

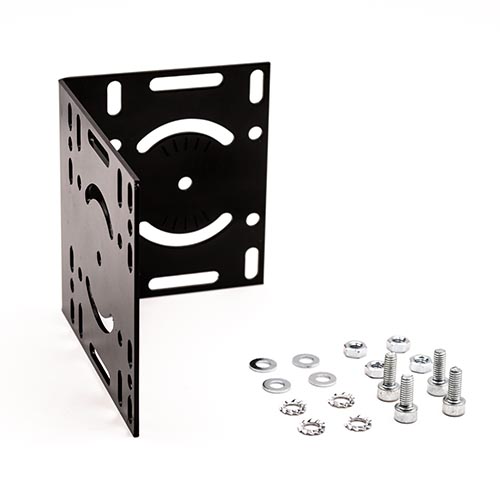

Robust steel mounting accessory – screws, nuts and washers included
Compatible with the Terabee IND-TOF-1 distance sensor, the 90° mounting bracket offers simple and precise installation. Easily mount sensor modules to your existing infrastructure using the M4 screws and nuts provided in the package. This robust steel accessory enables vertical and horizontal orientation of the sensor and includes 15° angle markings for easy adjustment up to 45° in any direction.
■ Key Product Features
- Compatible with Terabee IND-TOF-1 distance sensor
- Quick and easy installation
- Robust steel design for industrial environments
- M4 screw kit included in the package
- Adapts to your needs with 15° increments to tilt the sensor up or down

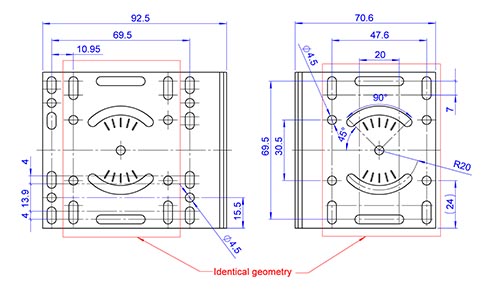

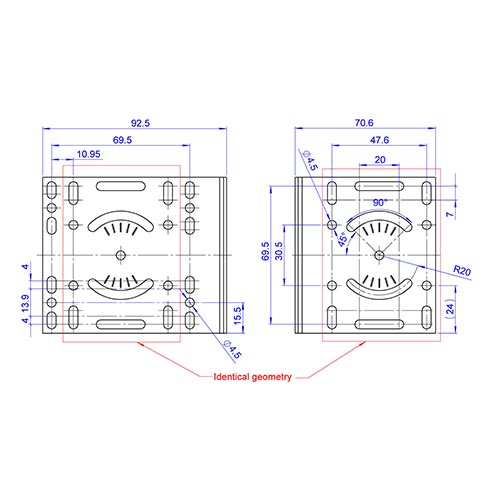

■ Dimensions & Hole Positions

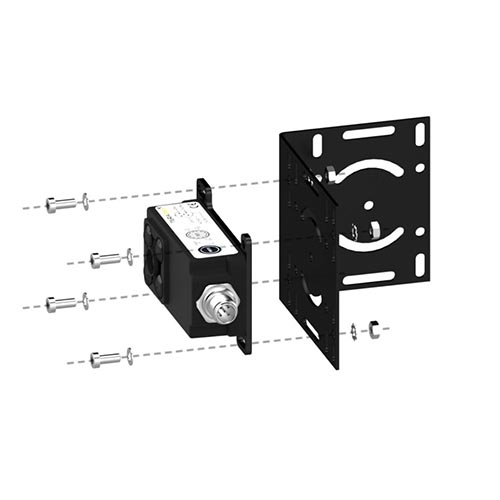

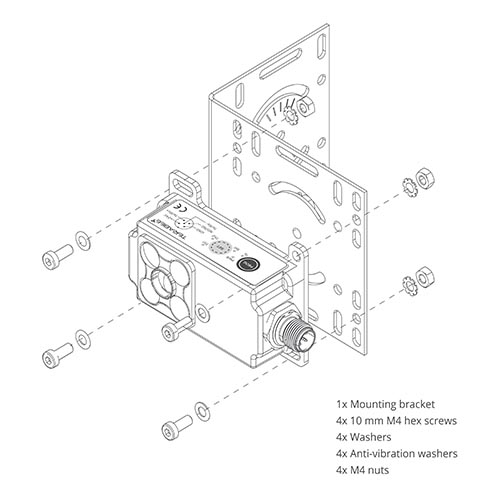

■ Sensor Attachment with Full Screw Set

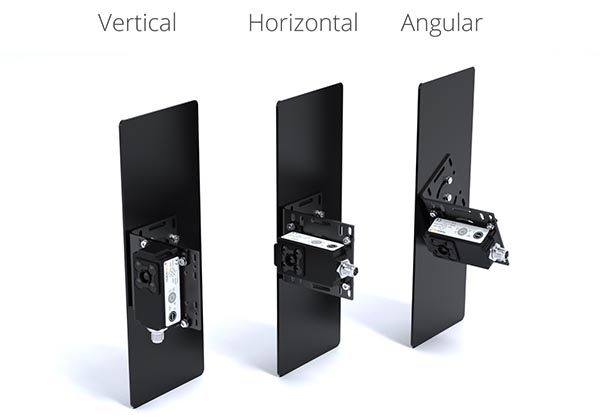

■ Attachment Examples
