■ Description

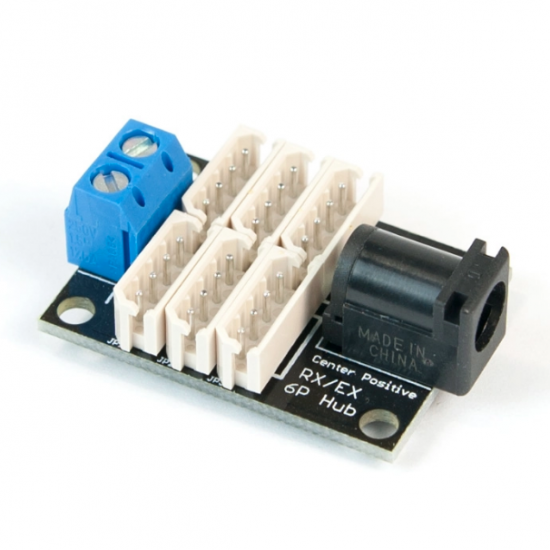

The 6 Port RX/EX/MX Power Hub is a must have accessory for any DYNAMIXEL user working with 4-pin servos.
The DYNAMIXEL communication bus allows you to daisy chain multiple servos, making wiring a breeze. However sometimes you need to split your DYNAMIXEL chain into multiple directions. Just plug a 4-Pin Dynamixel Cable from your controller to any port on the hub, and you’ll have 5 ports available for DYNAMIXEL’s 4-pin servos.

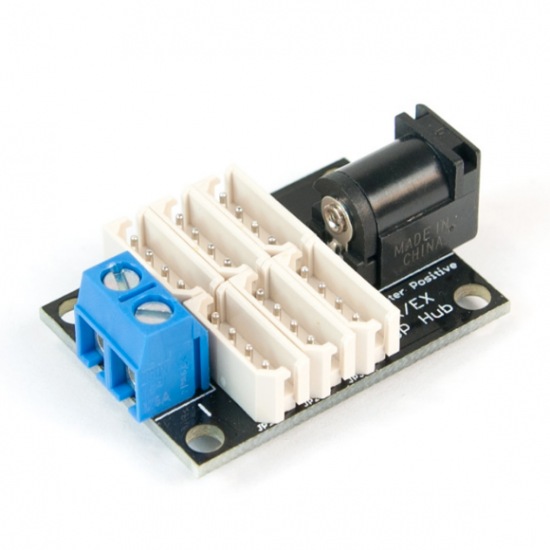

This hub has the added benefit of 2 power breakouts. You can plug in bare wire with the screw terminal block, or plug in power through the DC barrel jack. The 2.1*5.5 female barrel jack will accept our SMPS power supply.
The RX/EX Power Hub is compatible with the following DYNAMIXEL servos:
This hub is NOT compatible with the 3-pin AX, RX & MX series and the 4-pin X-series of DYNAMIXEL servos.
*Under certain circumstances, these servos can drop the voltage on Switched Mode Power Supplies. If you are using these servos with an SMPS we recommend also using the SMPS2DYNAMIXEL.
