Description

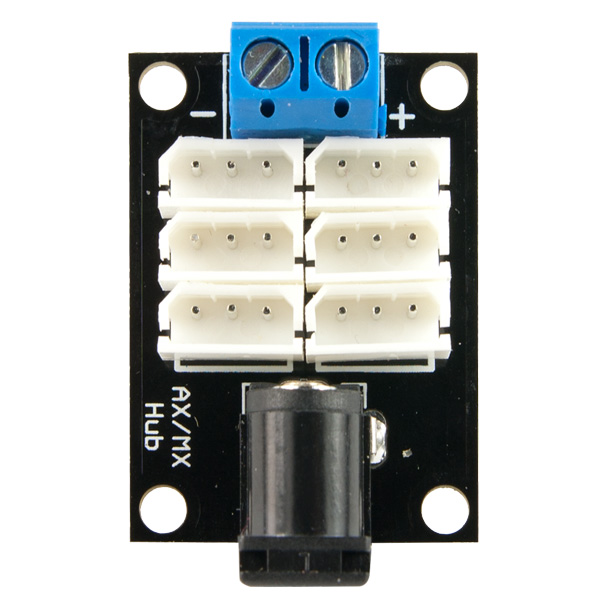

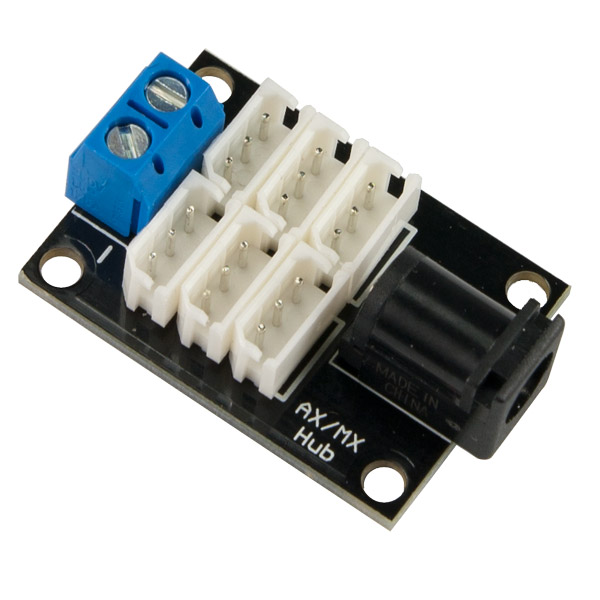

The 6 Port AX/MX Power Hub is a must have accessory for any DYNAMIXEL user. This little board is a 3P Extension PCB and a SMPS2Dynamixel all in one!

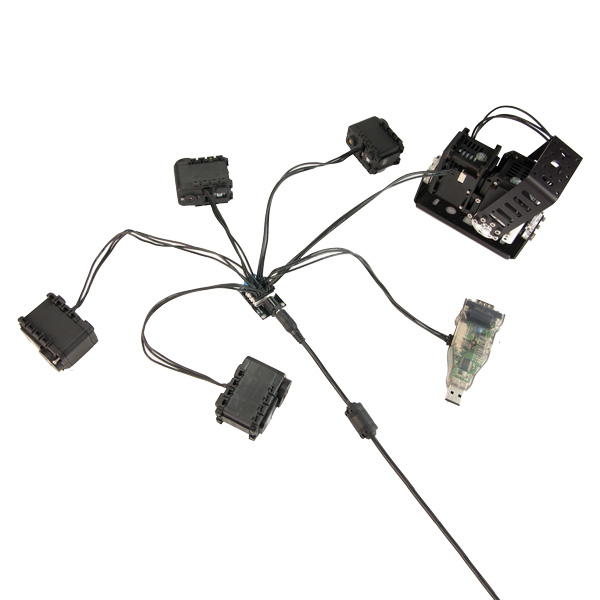

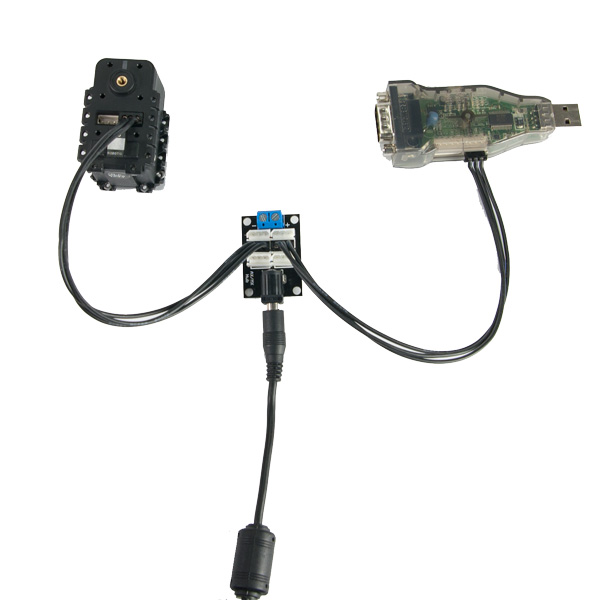

The DYNAMIXEL communication bus allows you to daisy chain multiple servos, making wiring a breeze. However sometimes you need to split your DYNAMIXEL chain into multiple directions. Just plug a 3-Pin Dynamixel Cable from your controller to any port on the hub, and you’ll have 5 ports available for DYNAMIXEL servos.
This hub has the added benefit of 2 power breakouts. You can plug in bare wire with the screw terminal block, or plug in power through the DC barrel jack. The 2.1*5.5 female barrel jack will accept our SMPS power supply.
The AX/MX Power Hub is compatible with the following DYNAMIXEL servos:
This hub is NOT compatible with the 4-pin RX, EX and MX series and the 3-pin X-series of DYNAMIXEL servos.
*Under certain circumstances, these servos can drop the voltage on Switched Mode Power Supplies. If you are using these servos with an SMPS we recommend also using the SMPS2DYNAMIXEL.
