Description
■ Description

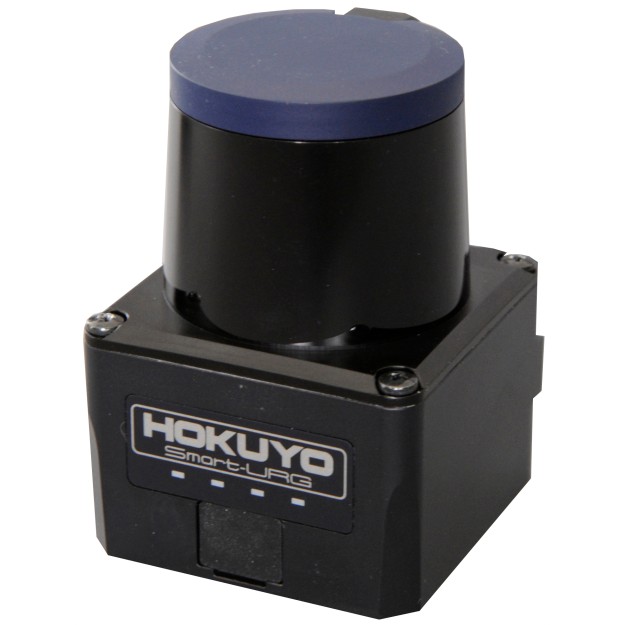

The UST-20LX Scanning Laser Rangefinder is a small, accurate, high-speed device for obstacle detection and localization of autonomous robots and automated material handling systems. This model uses Ethernet interface for communication and can obtain measurement data in a wide field of view up to a distance of 20 meters with millimeter resolution. Due to its low power consumption, this scanner is able to be used on battery-operated platforms. Positions of objects in the range are calculated with step angle and distance. Sensor outputs these data through communication channel.
- Weight: 130g
- Detection distance: Max. 60m
- Light source: Laser semiconductor (905nm)
- Scan speed: 25ms (Motor speed 2400rpm)
- Mid-detection range 20m, Wide detection angle 270°, Fast response 25msec, High angular resolution 0.25°
■ Applications
- Navigation and obstacle detection: Guide path planning for mobile robots and autonomous systems
- Object positioning: Control docking processes of AGVs, AGCs
- Object Profiling: Cargo containers, pallets for loading & unloading
- Object measurement and detection: Volume of packages, pallets, flow measurement of bulk materials
- Area monitoring: Building security and entrance ways

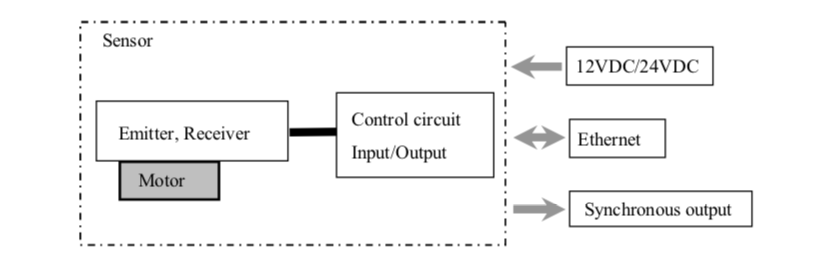

■ Structure Diagram

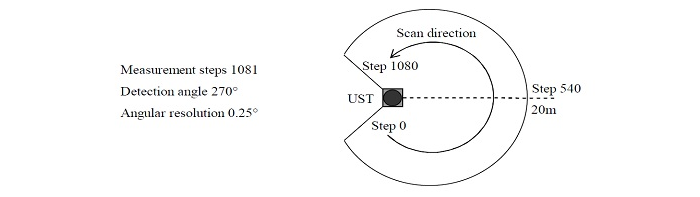

■ Laser Scanning Image
