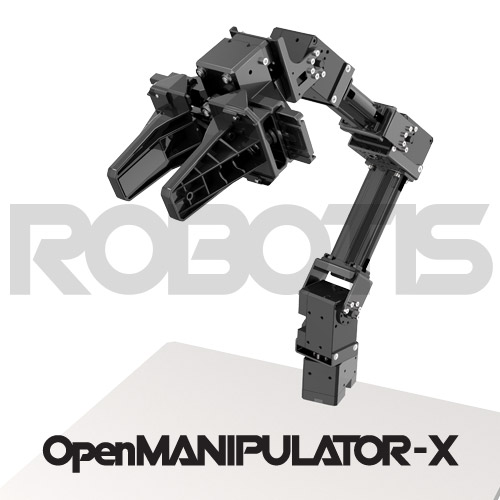

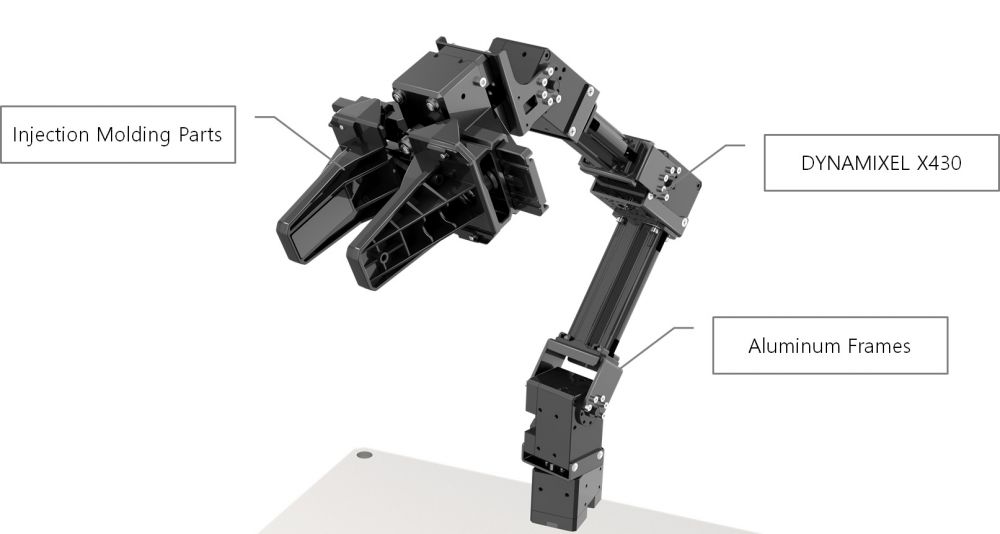

- Has a high payload as the DYNAMIXEL XM430-W350-T model is applied.

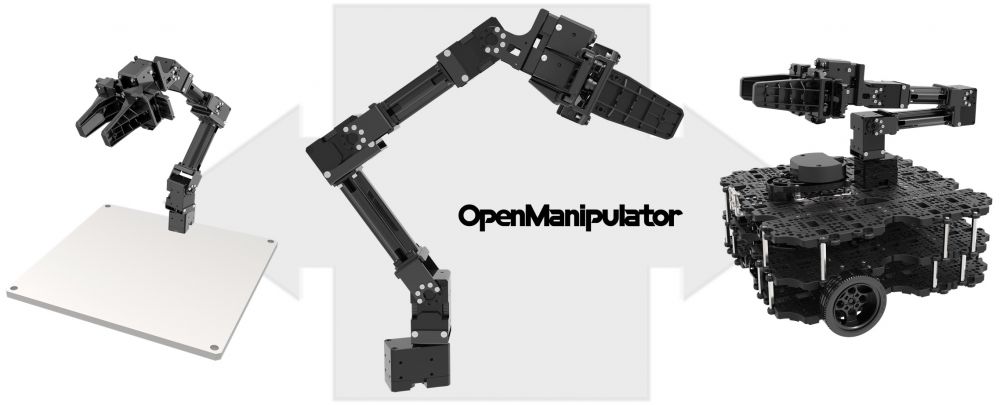

- Easy to use with PC or mobile platform such as TB3 Waffle Pi.
- Provides source code and development environment which allows you to immediately operate with the TB3 Waffle Pi.
(compatible with the controller and the power supply of the TB3 Waffle Pi)
- You can freely select and use either PC or OpenCR to control the OpenManipulator.
- Provides a variety of open source software as well as 3D drawings and CAD data for research and development.
■ Optional Parts (sold separately)
|Power Supply||SMPS 12V 5A|

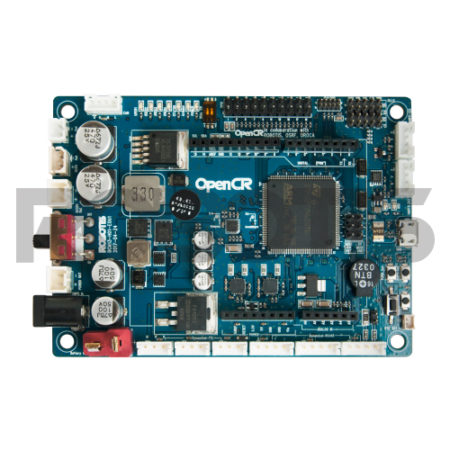

|Controller||OpenCR or PC|
|Frame||Pi-Camera Frame Set|
■ Please Note:
- The assembly manual is not included in the package and is only available to download online.
- The idler set, HN11-I101 Set, is included in case you would like to use DYNAMIXEL XL430 as a hinge. (Need to purchase DYNAMIXEL XL430 separately)
■ Package Contents

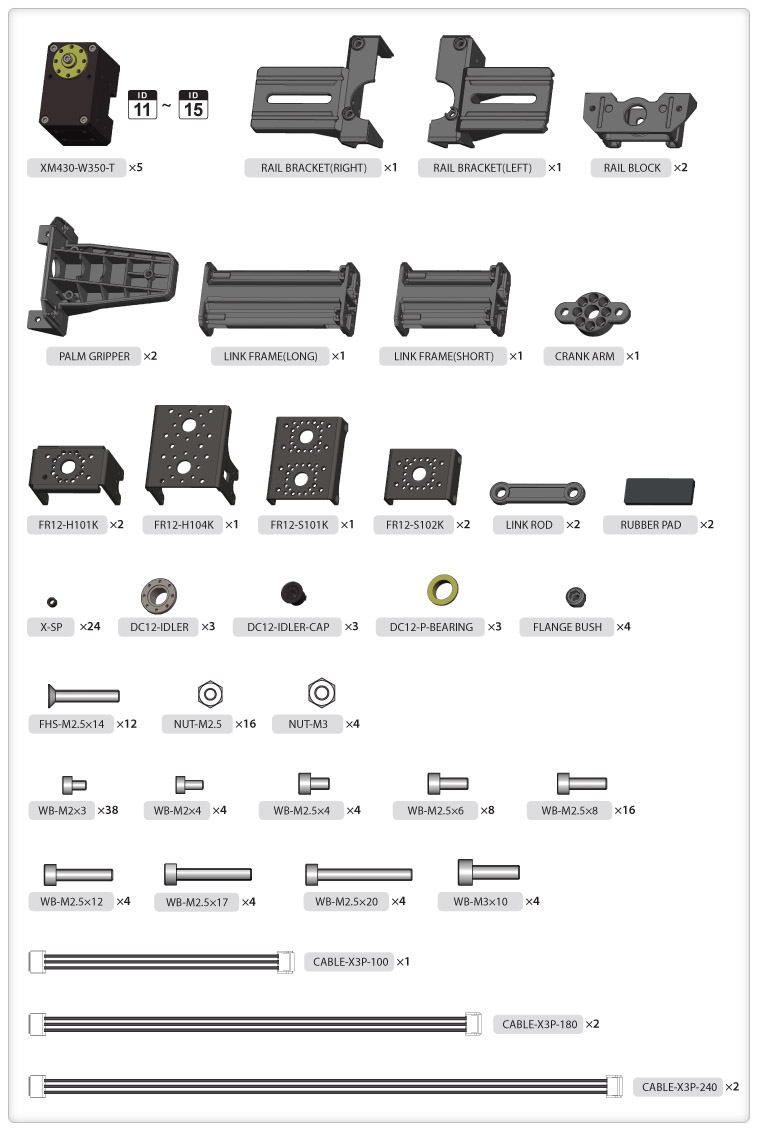

■ Parts List
|Exclusive Plastic Frame Set||1|
|HN11-I101 Set (spare)||3|
|Robot Cable Set X3P (by length)||5|
|Bolt & Nut Set||1|
|Rubber Pad (Finger Tip)||2 types x 2|
|Allen Wrench (by type)||3|
