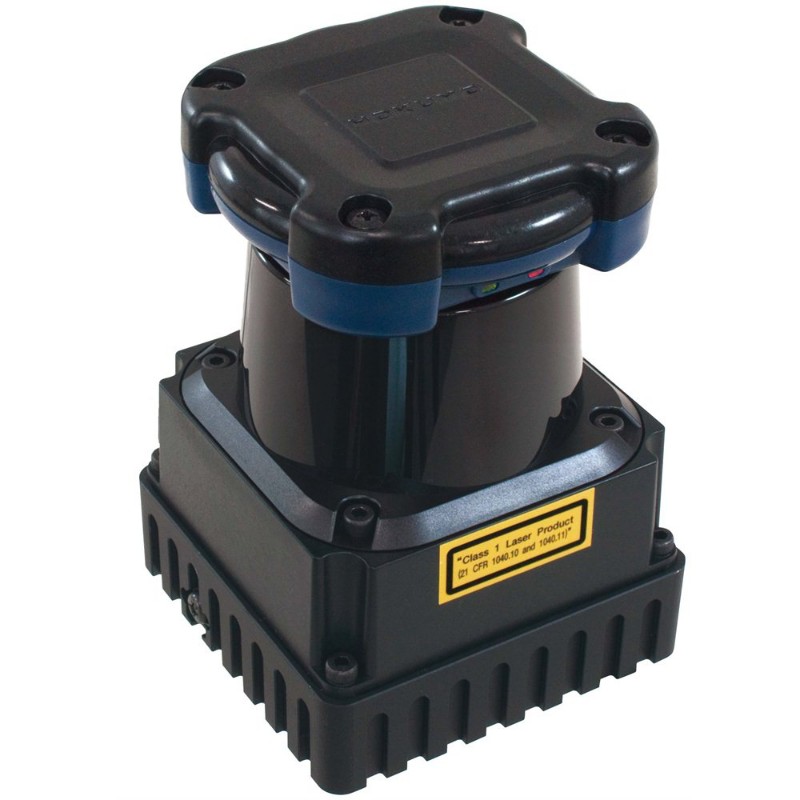

UTM-30LX-EW Scanning Laser Rangefinder

$7,568.00 ex. GST ($8,324.80 inc. GST - only Aust. customers are charged GST)

Small, accurate, high-speed scanning laser range finder for outdoor robotic applications

SKU: 501-0030-002 Categories: , , , , ,

Description

■  Description

The UTM-30LX-EW Scanning Laser Rangefinder is a small, accurate, high-speed device for outdoor robotic applications. This model uses Ethernet interface for communication and can obtain measurement data in a wider field of view up to a distance of 30 meters with millimeter resolution in a 270° arc.

  • 2D mapping of the environment in all weather conditions
  • Multi-echo technology for outdoor applications
  • Compact and light: W60 x D60 x H87 mm, 370g
  • Measurement distance: 30m
  • IP rating: 67



■  Operation Principles

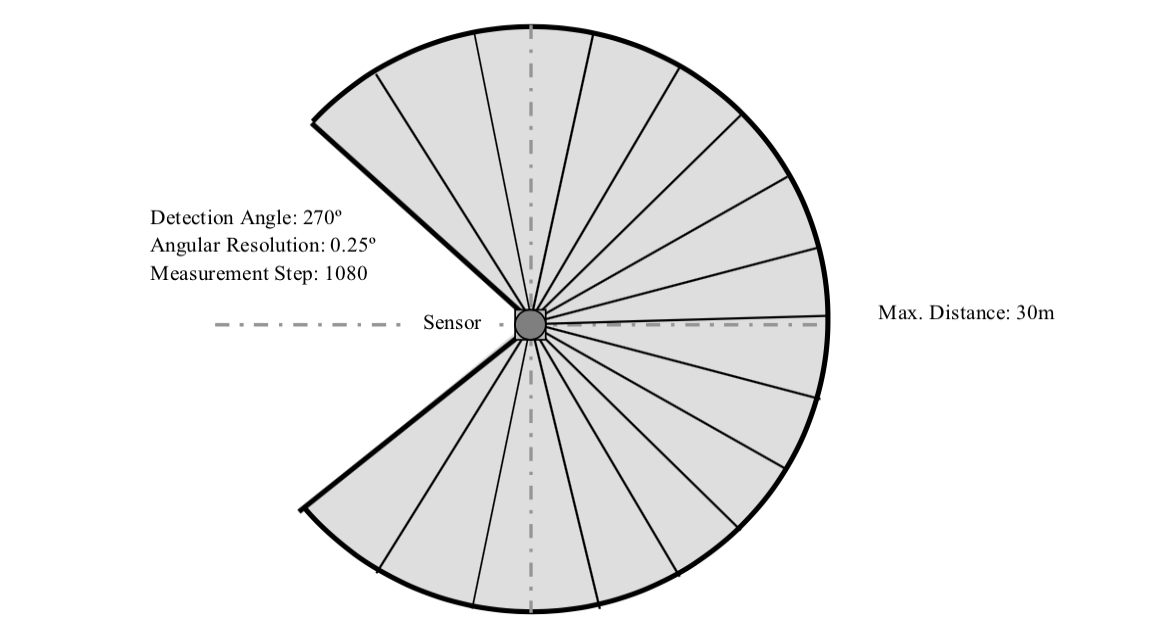

The UTM-30LX-EW uses a laser source (λ=905nm) to scan a 270° semicircular field. It measures the distance for each angular step to objects in its range. The measurement data along with its angular step is transmitted via a communication channel.

Specs

■  Specifications

Dimension (W×D×H)

62×62×87.5mm
Weight

210g (without cable)
Material

Polycarbonate
Light source

Laser Semiconductor λ = 905nm Laser Class 1
Supply voltage

12VDC ± 10%
Supply current

Max. 1A, Normal: 0.7A
Power consumption

Less than 8W
Detection range & Detection object

Guaranteed Range: 0.1 to 30m
Maximum Range: 0.1 to 60m
Minimum detectable width at 10m: 130mm (varies with distance)
Accuracy

0.1 to 10m: ±30mm, 10 to 30m: ±50mm
Under 3000lx: ±30mm(0.1 to 10m)
Under 100000lx: ±50mm(0.1 to 10m)
Measurement resolution & Repeated accuracy

1mm
0.1 to 10m : σ<10mm, 10 to 30m : σ<30mm
Under 3000lx : σ=10mm
Under 100000lx : σ=30
Scan angle

270°
Scan speed

25ms (motor speed 2400rpm)
Angular resolution

0.25° (360°/1440)
Interface

Ethernet 100BASE-TX (Auto-negotiation)
Output Synchronous Output 1-Point
LED Display Green: Power on
Red: Normal operation (continuous), Malfunction (blink)
Ambient temperature & humidity -10°C to +50°C, below 85%RH (without dew, frost)
Storage temperature -25 to +75°C
Environmental influence Measured distance will be shorter than the actual distance under rain, snow and direct sunlight.
Vibration resistance 10 to 55Hz Double amplitude 1.5mm in each X, Y, Z axis for 2hrs
55 to 200Hz 98m/s2 sweep of 2min in each X, Y, Z axis for 1hrs
Impact resistance 196m/s2 in each X, Y, Z axis 10 times
Protective structure IP67 (except Ethernet connector)
Insulation resistance 10MΩ DC500V Megger



Drawings

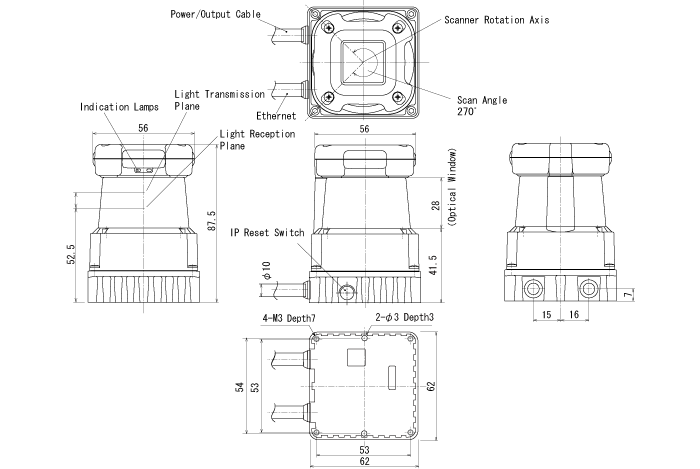

■  External Dimension
