URM-40LC-EWT Scanning Laser Rangefinder

URM-40LC-EWT Scanning Laser Rangefinder

$8,570.00 ex. GST ($9,427.00 inc. GST - only Aust. customers are charged GST)

SKU: 501-0040-002 Categories: , , , , ,

Description

■  Description

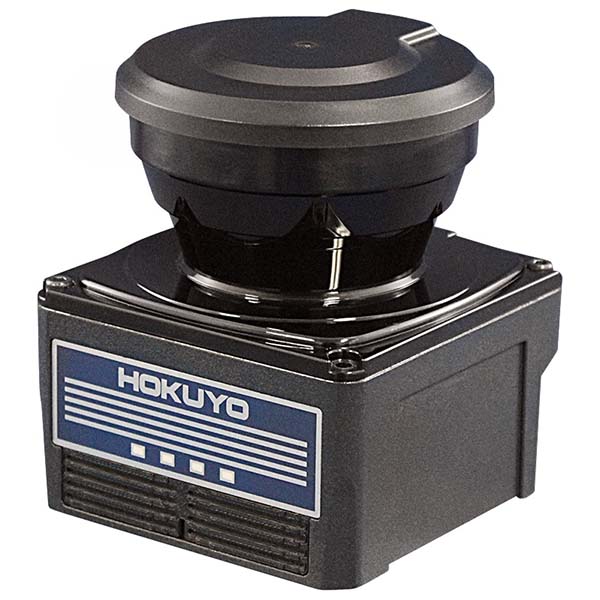

The URM-40LC-EWT 2D Scanning Laser Rangefinder is a compact, accurate, high-speed device with multi-echo functionality which is strong for both outdoor and indoor applications.
Depending on the purpose, you can select between distance data output mode and area configuration mode.

  • Detectable range up to 40m
  • Scan speed: 25-50msec/scan
  • 270° area scanning range with 0.25° angular resolution
  • Ethernet interface
  • IP67 protection rate
  • Compact size : 80 mm x 80 mm x 95mm



■  Applications

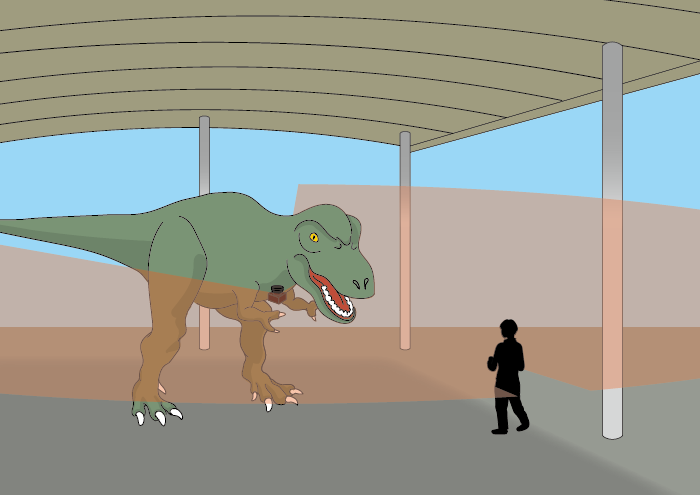

Area Protection

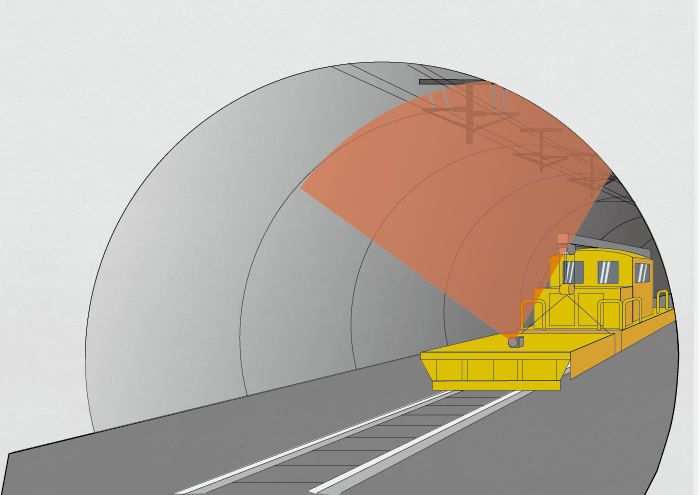

Environment Recognition

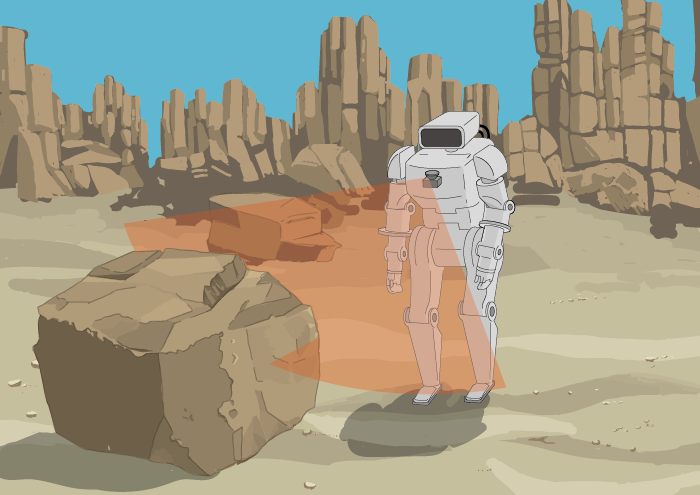

Recognition for Robots

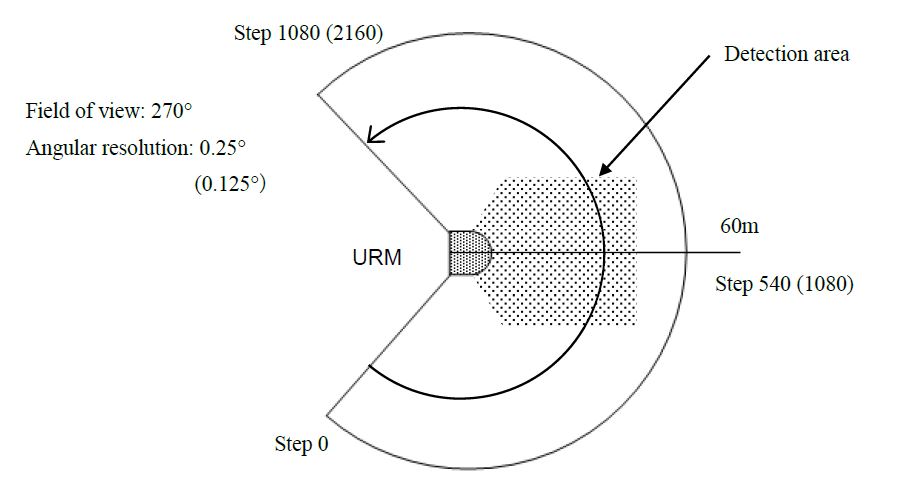

■  Laser Scanning Image

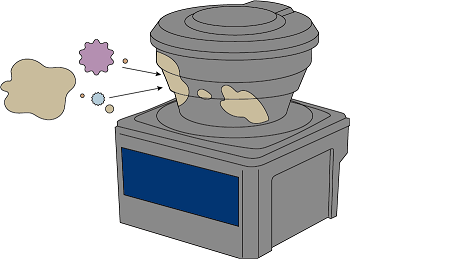

■  Optical Window Contamination Detection Function

The sensor has the contamination detection function and it informs you before malfunctioning.

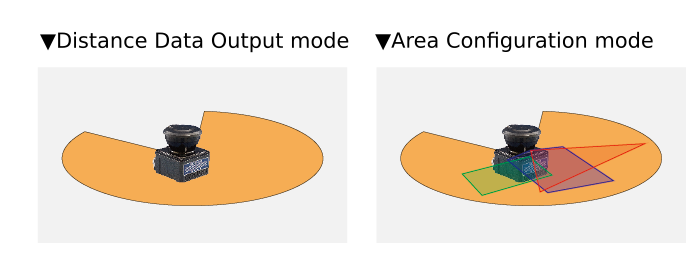

■  Switching Functions

Specs

■  Specifications

Model URM-40LC-EWT
Light Source Laser semi conductor (905nm)
Laser Safety Class 1 (IEC60825 1:2007 and IEC60825 1:2014)
Supply Voltage DC10V to 30V
Supply Current Continuous current : 700mA or less (when using DC 12V)
Peak current: 1.2 A or less (when using DC 12V)
Power Consumption 8.4W or less (During steady current)

Detection Range & Object

 0.1m to 40m*1 (White Kent sheet Reflectance 90% 500 mm×500mm )
0.1m to 18m*1 (Black paper Reflectance 10% 500mm×500mm )
Maximum detection distance: 60m
Minimum detectable size
Normal mode: 65mm (5m) , 130mm (10m), 260mm (20m)
High Resolution mode: 33mm (5m) , 65mm (10m), 130mm (20m)
Average Accuracy
by Distance		 White Kent sheet Reflectance 90%;
0.1m to 30m: ±20mm*1
30m to 40m: ±30mm* 1
Measurement　Resolution 1mm
Repeat Accuracy White Kent sheet Reflectance 90%
0.1m to 20m: σ < 10mm *1, 20m to 40m : σ < 15mm*1
Scanning Angle 270°
Angular Resolution /
Scan Speed		 0.25゜／25ms (Normal mode)
0.125゜／50ms (High Resolution mode)
Interface Ethernet　100BASE-TX (Auto-negotiation）
Outputs 5 OUTPUT; Area Detection 1 / Synchronization output, Area Detection 2,
Area Detection 3 / Synchronization master, Ready, Malfunction
Inputs 3 INPUT Area 1, Area 2, Area 3 / Synchronization input
(Maximum area pattern : 7 patterns)
Response Time Within 50ms (However, it differs depending upon the settings)
Start-up Time Within 15 sec (start up time differs if malfunction is detected during start up)
LED Display Blue LED : Power supply and normal operation
Orange LED: Area determination
(About LED display refer to section 6.3 in specification sheet)
Ambient Temperature
& Humidity		 -30°C to +50°C , below 85%RH (Without dew, frost)
Ambient Illuminance 100,000lx*2
Vibration Resistance 10 to 55Hz double amplitude of 1.5mm for 2hrs in each X, Y, and Z direction
55 to 150Hz 98m/s2 (10G) sweep of 2min for 1hr in each X, Y and Z direction
Shock Resistance 196m/s2（20G） X,Y and Z directions each 10 times

*1 Indoor environment (fluorescent lamp, 1,000 lux or less)
*2 Detection cannot be guaranteed when direct light (such as sunlight) enters the device.



Drawings

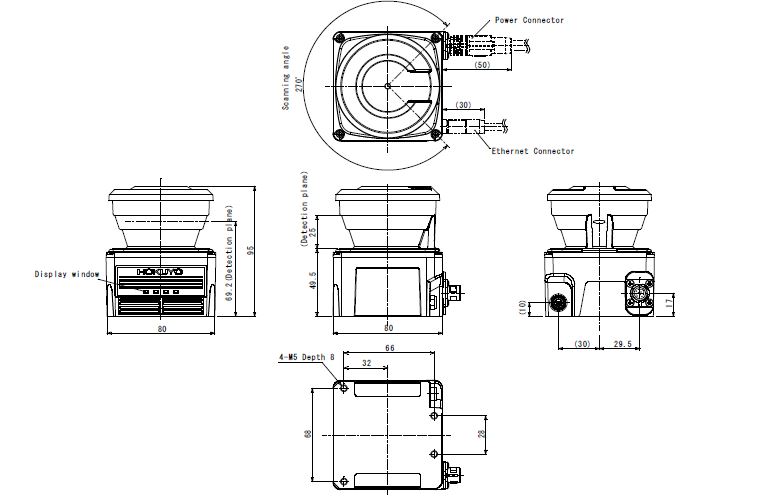

■  External Dimension
