Description
■ Description

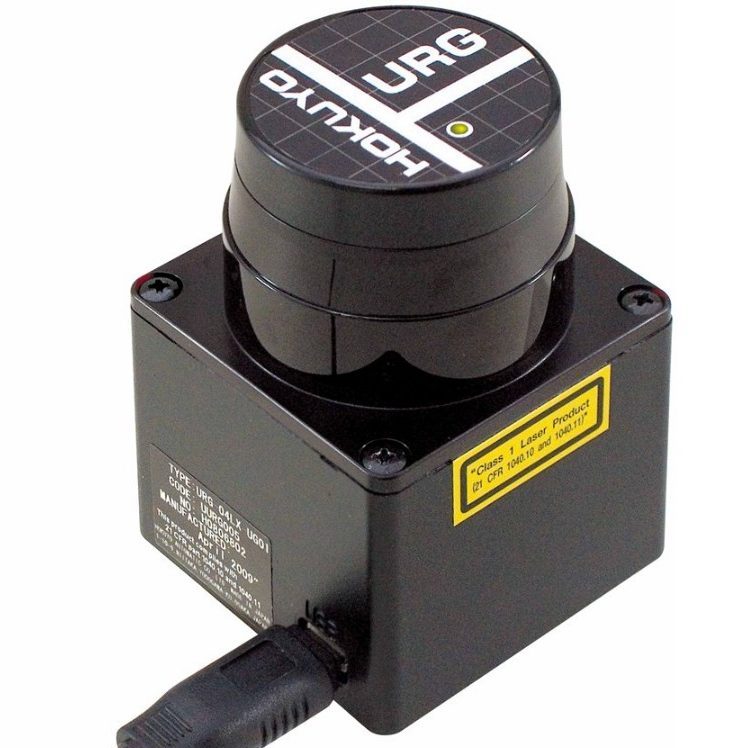

The URG-04LX-UG01 Scanning Laser Rangefinder is a low power, small, accurate, high-speed device for obstacle detection.
- Light weight (160g)
- Low-power consumption (2.5W) for longer working hours
- Accuracy(±30mm)
- Distance and angle data output with high angular resolution (0.352°)
■ Operation Principle

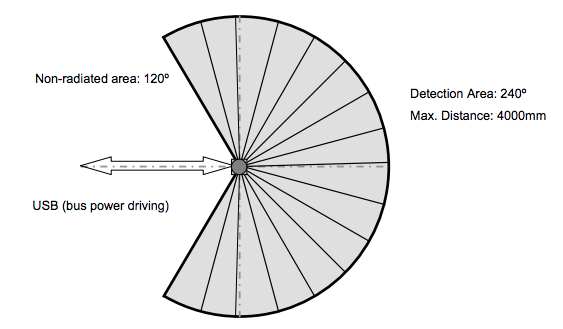

URG-04LX is a laser sensor for area scanning. The light source of the sensor is infrared laser of wavelength 785nm with laser class 1 safety. Scan area is 240º semicircle with maximum radius 4000mm. Pitch angle is 0.36º and sensor outputs the distance measured at every point (683 steps). Laser beam diameter is less than 20mm at 2000mm with maximum divergence 40mm at 4000mm.
