UGM-50LAP Scanning Laser Rangefinder

UGM-50LAP Scanning Laser Rangefinder

Call for Price

SKU: 501-0050-001 Categories: , , , , ,

Description

■  Description

The UGM-50LAP Scanning Laser Rangefinder is a durable, accurate, high-speed device with multi-echo functionality which is best for construction environments and all other outdoor applications.

  • Detectable range up to 120 meter and 190 degree
  • Scan speed: 20-80msec
  • Shock resistance 50G
  • Metal casing protects the internal system
  • Ethernet interface
  • IP67 protection rate
  • Compact size : 155mm × 166mm × 176mm



■  Comparison: UGM-50LAP vs UGM-50LXP

Model  UGM-50LAP UGM-50LXP
Output 7 PNP OUTPUT :
Synchronization master output, Synchronization output,
Malfunction output, Contamination output, Area detection 1 to 3
(Open collector output DC30V 50mA MAX)		 4 PNP OUTPUT :
Synchronization master output, Synchronization output,
Malfunction output, Contamination output
(Open collector output DC30V 50mA MAX)
Input 7 INPUT :
Synchronous input, IP Reset input, Reboot input, Area input 1 to 4
(All 15 patterns)
(Photo coupler input, Cathode common, Input ON current 2mA)		 3 INPUT :
Synchronous input, IP Reset input, Reboot input
(Photo coupler input, Cathode common, Input ON current 2mA)



■  Applications

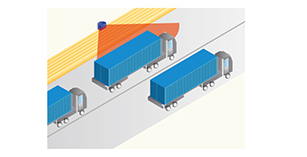

Car Detection

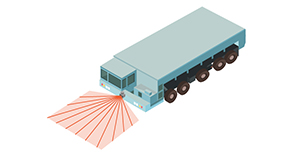

Obstacle Detection

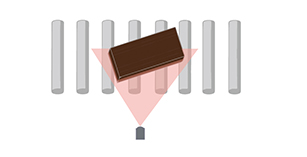

Metal Detection

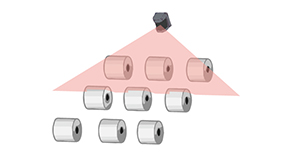

Metal Detection

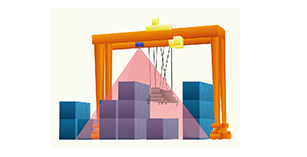

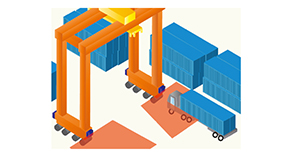

Port
Port

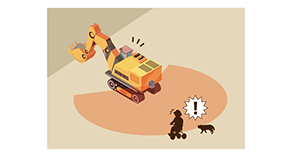

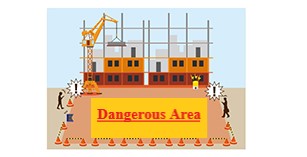

Construction
Construction

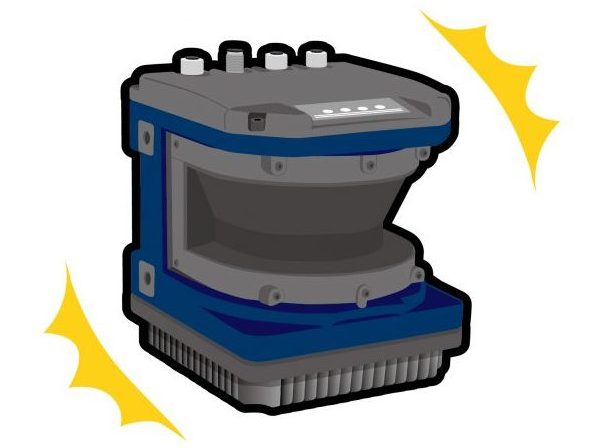

■  Shock Resistance

The UGM-50LXP‘s metal case allows the sensor to be durable and shock-resistant, which makes it perfect for turbulent environments.

  • Shock resistance: 50G(single)
  • Vibration resistance: 5G

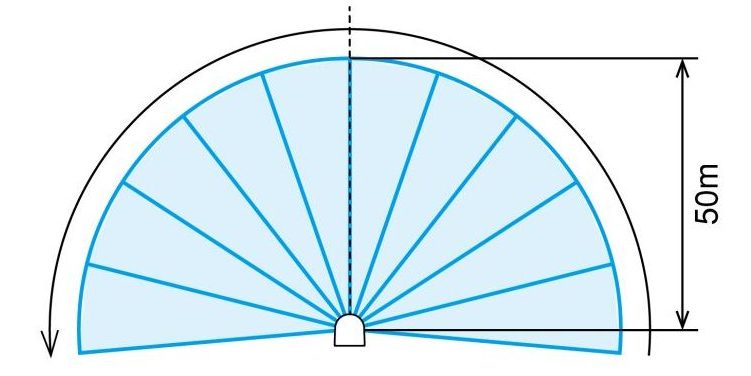

■  Black Object Detection at 50 Meters

The UGM-50LXP can detect a white object from a distance of 120 meters and a black object at 50 meters.



■  Fast and High resolution

  • 20msec （Normal mode 3000rpm） / approx. 0.32°（360°/1125）
  • 40msec （Low speed mode 1500rpm） / approx.0.16° （360°/2250）
  • 80msec （High resolution mode 750rpm）/ approx.0.08° （360°/4500）



■  Optical Window Contamination Warning Function

The sensor has a contamination detection function which informs you before the malfunction stop.

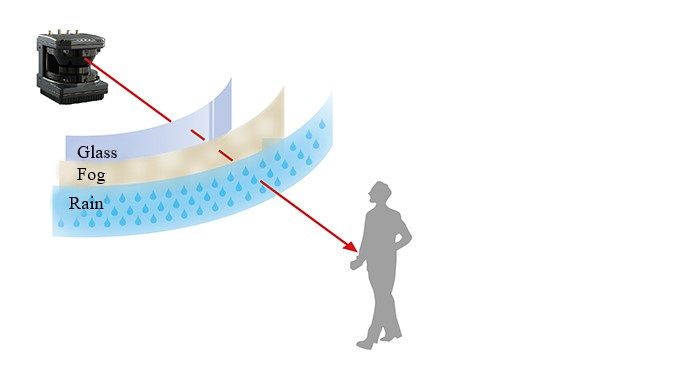

■  Multi-Echo Function

Multi Echo Functionality is ideal for applications in harsh environments such as rain, snow and fog.

Specs

■  Specifications

Product name Scanning Laser Range Finder
Model UGM-50LAP
Light source Laser semi conductor (905nm)
FDA Laser Safety Class 1 (IEC60825-1:2014)
Supply voltage DC 24V±10%
Supply current Steady state current : 1A or less
Starting current : 1.5A or less, without Heater*1
Power consumption 24W or less (Steady state and current)
Heater voltage DC24V
Heater current Steady state and Starting current : 2A or less, Only Heater*2
Heater
power consumption		 48W or less
Detection range and object Guarantee detection range:
0.1m to 50m*3 (10% Reflectance Black paper 500mm×500mm )
0.1m to 120m*4 (90% Reflectance white Kent paper1400mm×1400mm )
Maximum detection distance: 120m (Distance output range: 160m)
Minimum detectable size
Normal mode: 65mm (5m) , 130mm (10m), 260mm (30m)
High Resolution mode: 33mm (5m) , 65mm (10m), 130mm (30m)
Average Accuracy by distance 10% Reflectance Black paper
0.1m to 30m ： ±30mm (Indoor 1,000lx or less)
30m to 50m ： ±40mm (Indoor 1,000lx or less)
0.1m to 50m ： ±50mm*5 (Outdoor 100,000lx or less)
90% Reflectance white Kent paper
0.1m to 50m ： ±30mm
0.1m to 50m ： ±50mm*5 (Outdoor 100,000lx or less)
Measurement
resolution		 1mm
Repeat accuracy 10% Reflectance Black paper
0.1m to 30m ：σ < 9mm (Indoor 1,000lx or less)
30m to 50m ：σ < 15mm (Indoor 1,000lx or less)
0.1m to 50m ：σ < 15mm*5 (Outdoor 100,000lx or less)
90% Reflectance white Kent paper
0.1m to 50m ：σ < 9mm (Indoor 1,000lx or less)
0.1m to 50m ：σ < 15mm*5 (Outdoor 100,000lx or less)
Scanning angle 190°
Scan speed/
Angular resolution		 20ms*6 (Normal mode 3000rpm) / approx. 0.32°(360°/1125)
40ms*6 (Low speed mode 1500rpm) / approx.0.16° (360°/2250)
80ms*6 (High resolution mode 750rpm) / approx.0.08° (360°/4500)
Start up time Within 30 sec after power supply
Outputs 7 PNP OUTPUT : Synchronization master output, Synchronization output,
Malfunction output, Contamination output, Area detection 1 to 3
(Open collector output DC30V 50mA MAX)
Output response time 40msec or less (Normal mode)
80msec or less (Low speed mode)
160msec or less (High resolution mode)
In either case, change depending upon the delay setting
Inputs 7 INPUT : Synchronous input, IP Reset input, Reboot input, Area input 1 to 4
(All 15 patterns)
(Photo coupler input, Cathode common, Input ON current 2mA)
Interface Ethernet 100BASE-TX (Auto-negotiation)
LED display 4 LEDs (Yellow Green, Orange, Blue, Red)
Ambient temperature
and humidity		 -10 to +50°C below 85%RH
-30 to +50°C below 85%RH (While using the heater)
(Without dew, frost)
Environment effect A measured distance will be shorter than an actual distance under the influence of rain, snow and direct sunlight.*7
Vibration resistance 10 to 150Hz 5G (IEC60068-2-6:2007)
Shock resistance 3 times 50G, 1000 times 25G (IEC60068-2-27:2008)
EMC standards (EMI)
EN61326-1:2013
EN55011:2009 + A1:2010
(EMS)
EN61326-1:2013
EN61000-4-2:2009
EN61000-4-3:2006 + A1:2008 + A2:2010
EN61000-4-4:2012
EN61000-4-6:2009
EN61000-4-8:2010
Protective structure IP67 (IEC60529:2001)
Insulation resistance 10MΩ
Weight Approx. 4.2kg (without connection cables)
Material Optical window : Polycarbonate, Body : Aluminum
Dimensions(W×D×H) 155mm × 166mm × 176mm (Without connector)
External dimension：MC40-03391

Notes:
*1 When a heater power is not connected or OFF.
*2 This is the current consumption of only heater.
Details of heater operation is described in Specification.
*3 Indoor environment (under fluorescent lamps, 1,000 lx or less)
*4 In the high resolution mode(750rpm), the guarantee detection range is 120m.
*5 Detection cannot be guaranteed when direct light (such as sunlight) enters into the inside of the product.
*6 You must restart after changing the scan speed.
*7 Please check the influence of ambient environment on the detection accuracy using a product.



Drawings

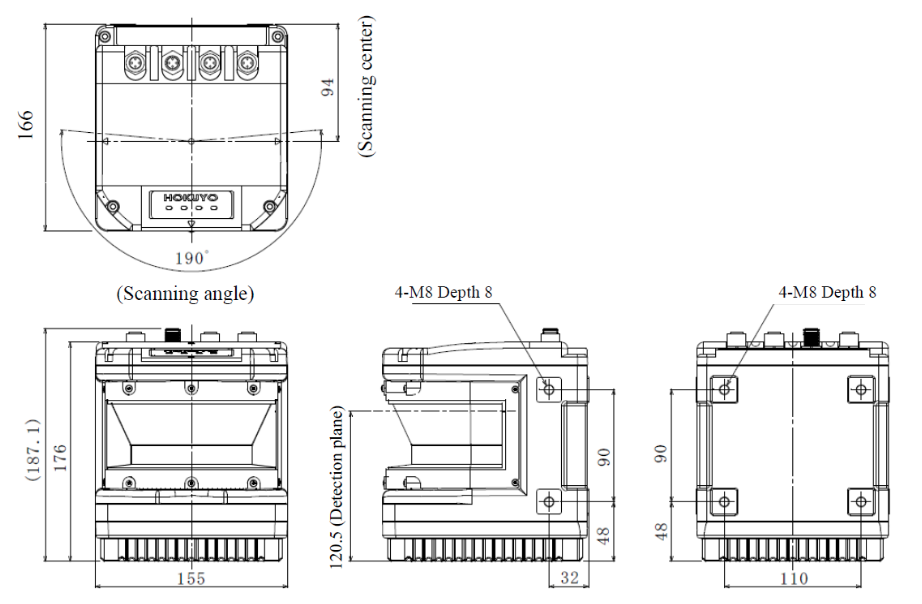

■  External Dimension

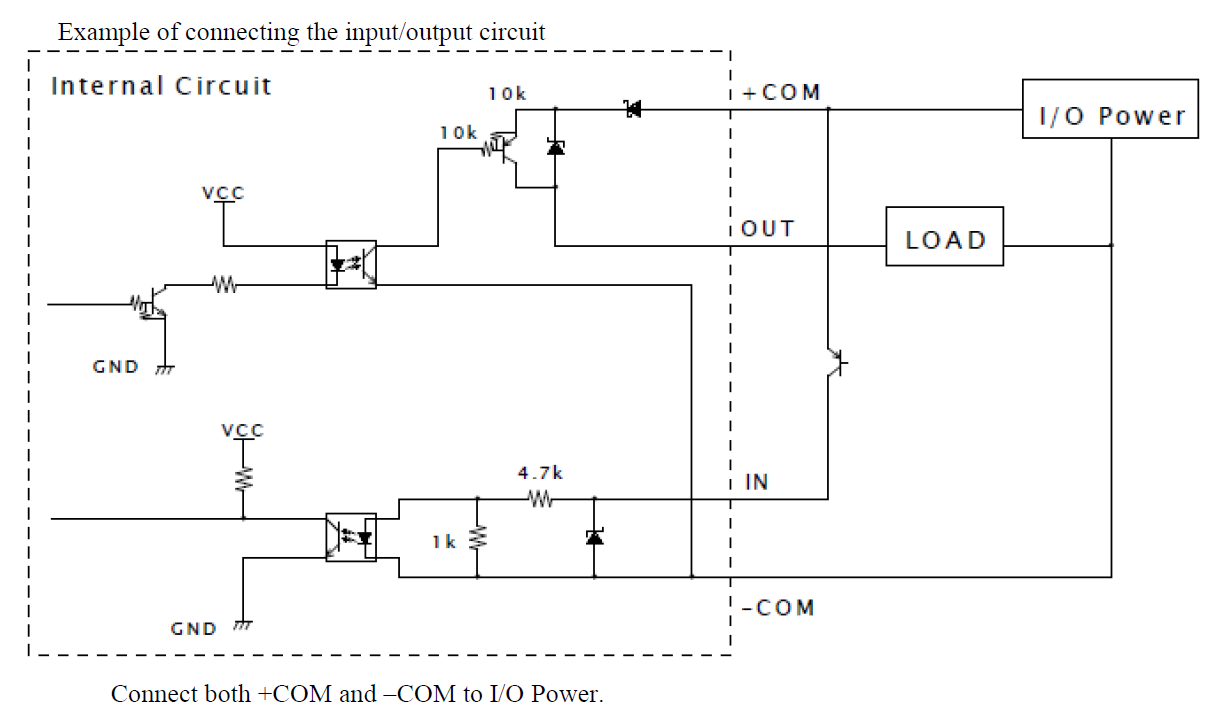

■  Input/Output Circuit
