Description
■ Description
- ALF-M101 is a mounting plate which enables DYNAMIXEL to be mounted on the T-slot Aluminum Profile.
- Compatible with DYNAMIXEL XM430, XH430, XM540, and XH540 models.

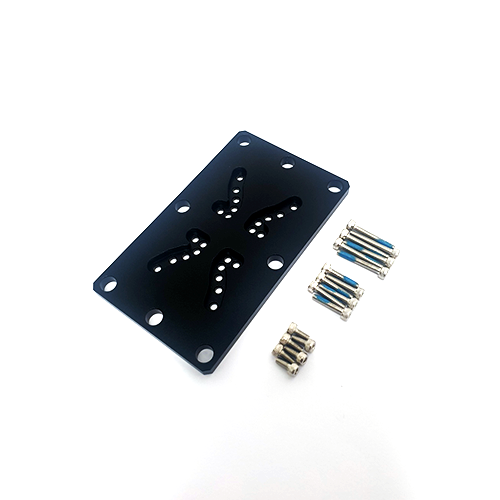

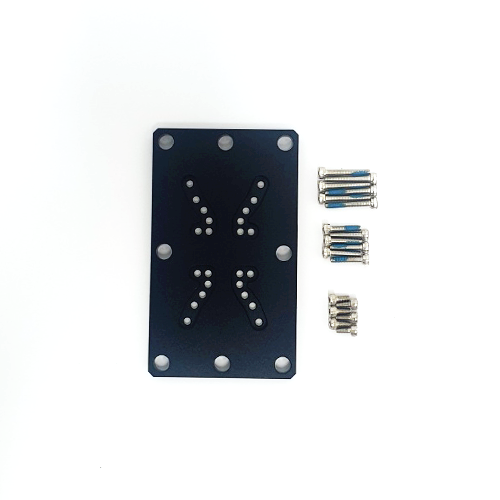

■ Package Contents
| Item | Quantity | Description |
|---|---|---|
| ALF-M101 | 1 | Frame compatible with T-slot Aluminum Profile |
| Wrench Bolt WB M2.5×5 | 6 | For frame assembly(Side hole) |
| Wrench Bolt WB M2.5×17 | 6 | For X430 assembly with the frame |
| Wrench Bolt WB M2.5×20 | 6 | For X540 assembly with the frame |

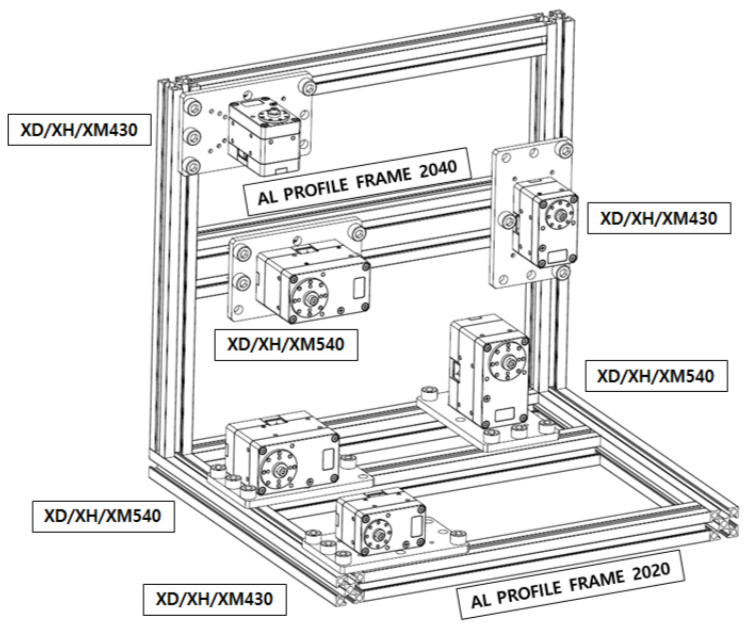

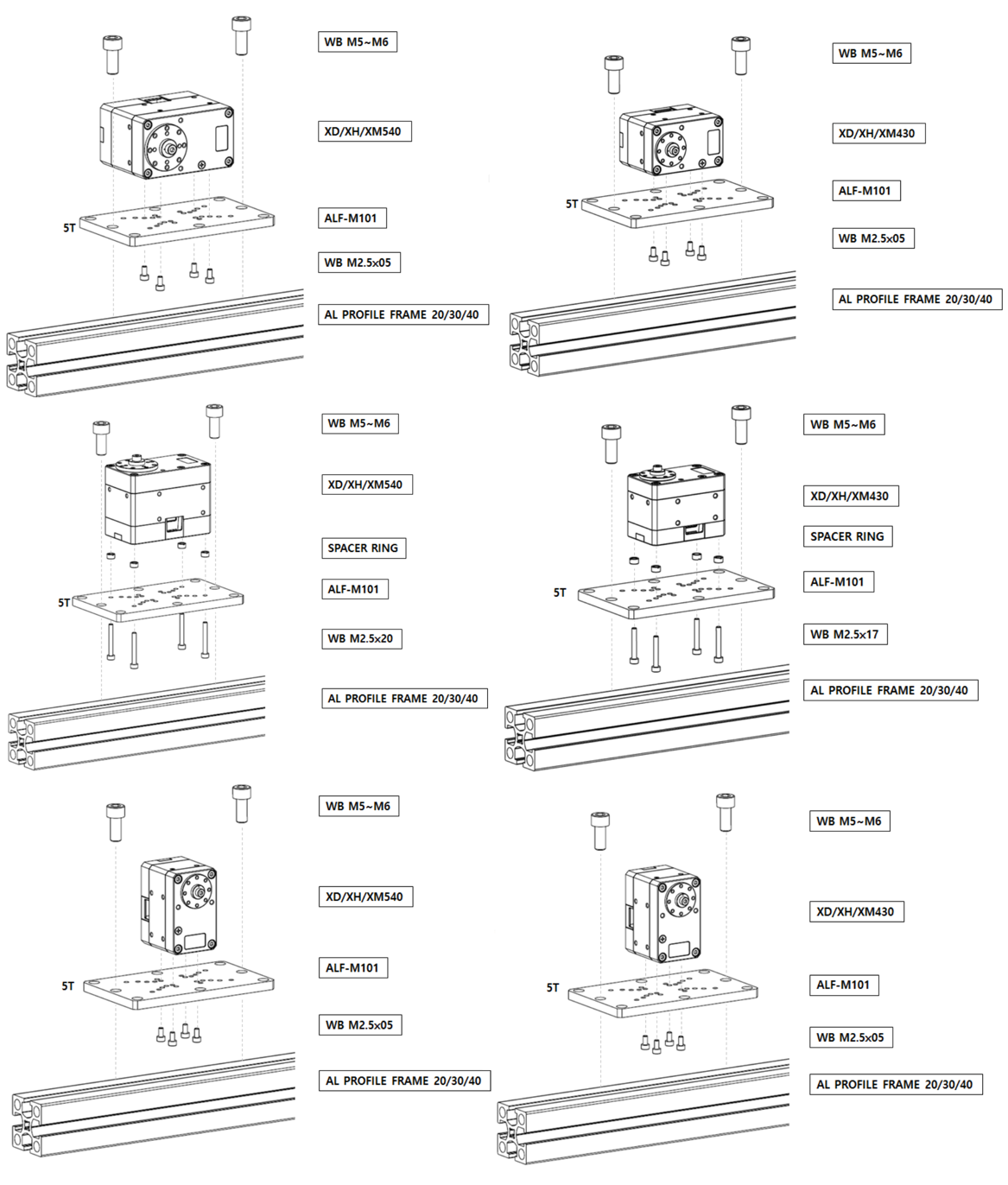

■ Assembly Examples
■ Downloads
