$921.00 ex. GST ($1,013.10 inc. GST - only Aust. customers are charged GST)
■ Description
This base plate made of aluminum is used to fix the OpenManipulator-PRO to a table.
Use a clamp or the holes on the plate to fix onto the plate. (Clamp not included)
■ Package Contents
| Description | Quantity | Weight | |
| Frame | Base Plate (450mm x 330mm) | 1 | 2.15 kgs |
| Frame | Angle | 2 | 30g/ea |
| Screw | Wrench Bolt(WB M3*8) | 30 | – |

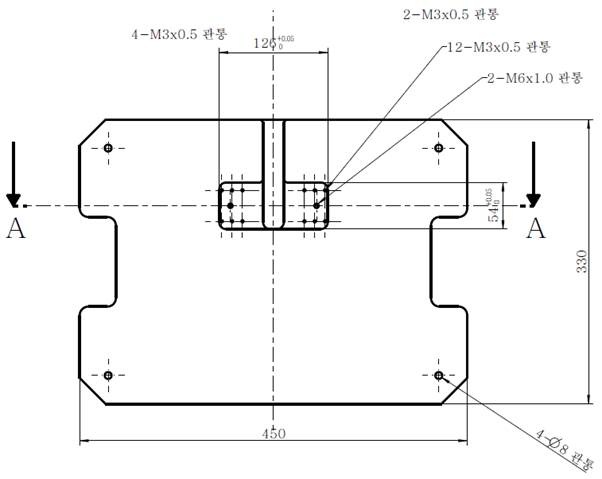

■ Drawing (Link)
■ Installation Method

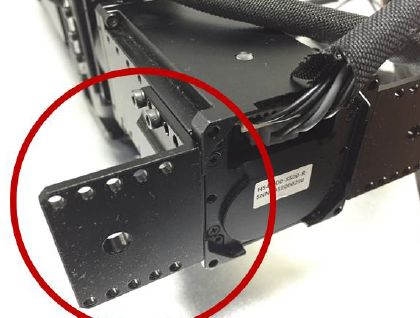

1. Fix the ‘L’ shaped angle with the bolt to the Manipulator joint #1.

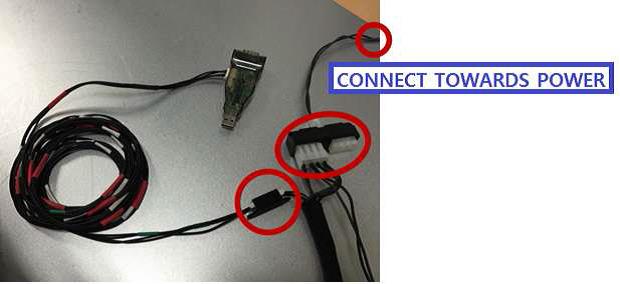

2. The photo on the left is the external wiring for the arm. Label #1 shows a pair of 4P cables and power connector; these connect to joint #1 as shown on the right picture.

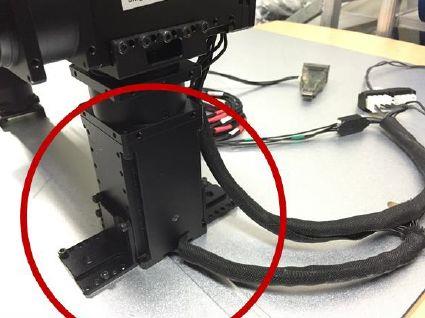

3. Once the connections are complete, fix the arm to the base plate as shown on the photo below.

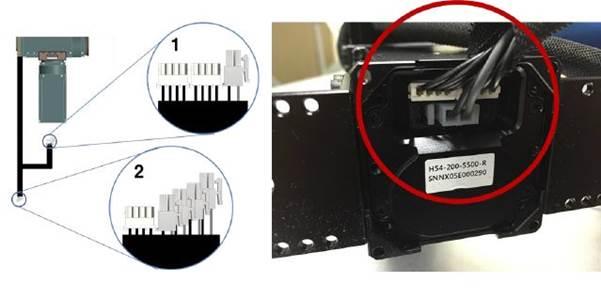

4. Label #2 shows a 4P connector and 4 power connectors and these connect to the power expansion hub and the 4P cable connects to the extension.
5. Connect the USB2Dynamixel to the hub with the 4P cable; connect another port of the 4P hub to the extension.
