■ Basic Features

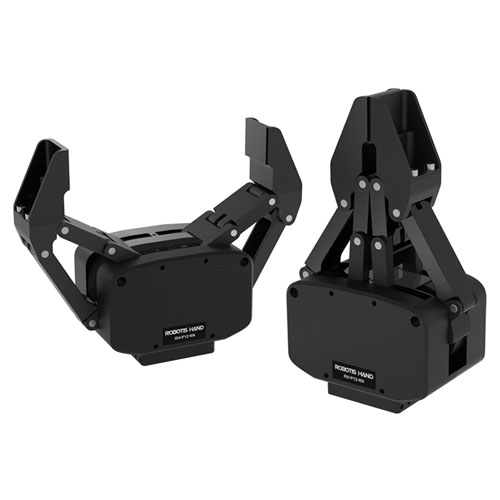

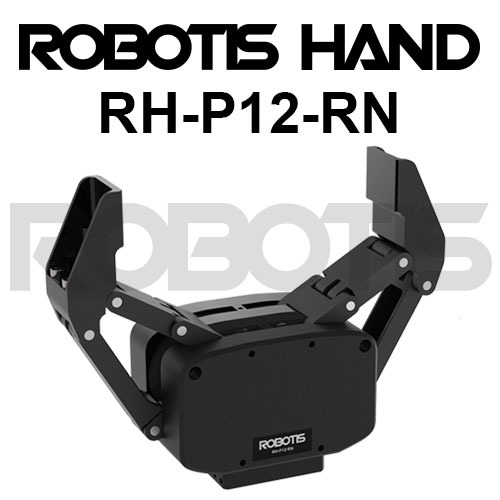

- 1-DOF Two-Finger Hand
Multi-functional robot hand with 2 fingers powered by 10W DC motor.
- Adaptive Gripping Design
Passive Joints enable adaptive gripping for various shapes of objects.
- Current Control (Force Control)
Torque control and current-based position control make it possible to pick up objects of various materials.
- Light Weight & High Power
5kg of high payload is delivered from 500g light weighted robot hand.
- Detachable Finger Tips
Detachable finger tips can be easily replaced with customized finger tips.
- Intuitive and Simple Mounting
The robot band can be quickly mounted on ROBOTIS Manipulator.
Simplified design enables easy mounting on custom applications.
- Dynamixel 2.0 Protocol
The robot hand supports DYNAMIXEL 2.0 protocol for easy control.
Power and communication are connected via DYNAMIXEL BUS.
■ Package Contents
|Cable||Robot Cable-X4P 180mm||1|
|Robot Cable-X4P 180mm (Convertible)||1|
■ Default Settings
- ID : 1
- Baud Rate : 57600bps
(Please make necessary modifications to ID, baud rate, etc. after purchase.)

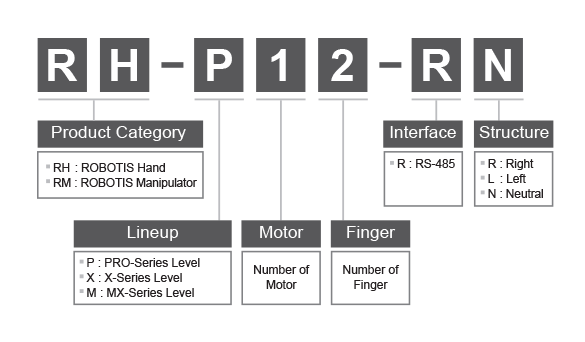

■ Model Numbering
■ Please note:
The RH-P12-RN is a build-to-order item and will require a lead time of 2 weeks upon order confirmation.
