Description
■ Description
- The HNX430-C101 Set is a set of a clamping horn, two bolts and a thrust washer designed for the DYNAMIXEL XH430 and XM430 models.
- The horn is to be connected to the wheel gear of the output shaft of the DYNAMIXEL.
- The bolt clamping structure allows the horn to be more engaged to the wheel gear, and provides the effect of preloading the clamping force of the output shaft.
- When the output shaft wears out due to vibration and shock, the clamping bolt increases the clamping force for continuous use.
- When using LOCTITE on the screw, it can be tightened more firmly.
- This set is NOT compatible with the hinge frame, FR12-H101K Set. The hinge frame compatible with this clamping horn will be released soon.
■ Package Contents
| Item Name | Quantity | Description |
|---|---|---|

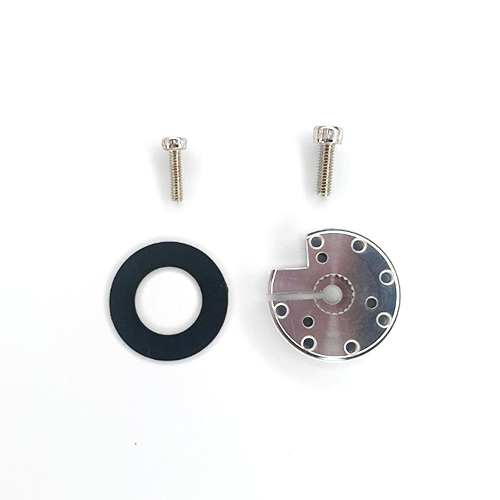

| HN12-C101 | 1 | Clamping horn |
| Wrench Bolt WB M2.5×8 | 1 | Bolt for fastening horn to wheel gear |
| Wrench Bolt WB M2x8 | 1 | Bolt for clamping |
| Thrust Washer | 1 | Thrust Washer |

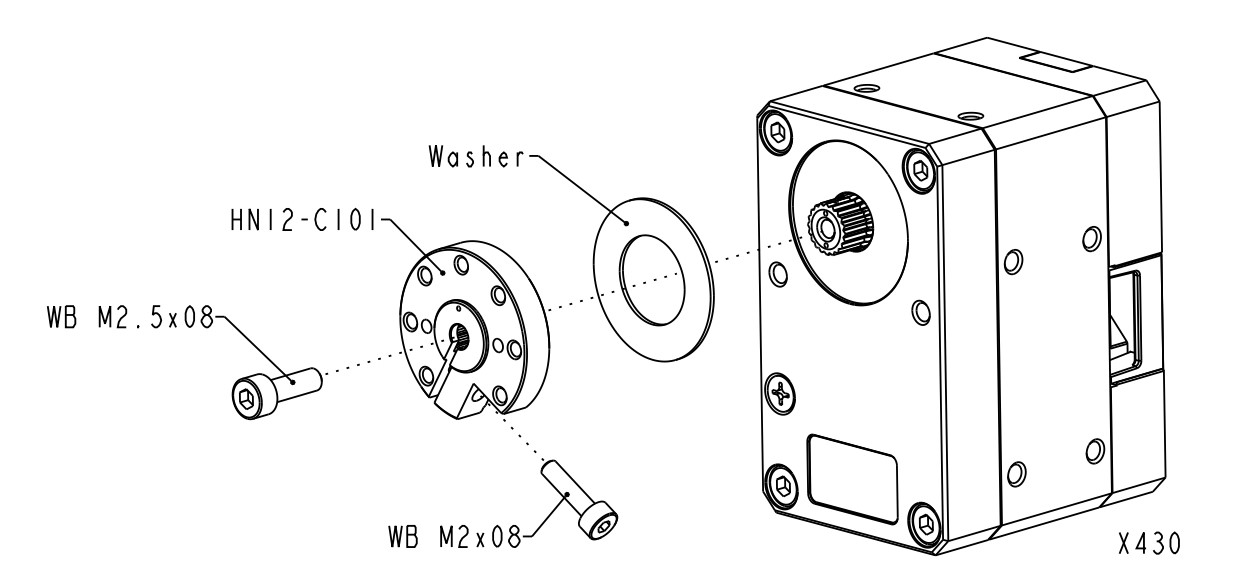

■ How to Assemble
■ Please Note:
- Please note that this set is NOT compatible with the entire DYNAMIXEL MX-series and the XL430, XC430, 2XL430 and 2XC430 in the X-series.
- For the waterproof XW-series, rust may occur depending on the operating environment, so it is recommended to use stainless-type screws.
