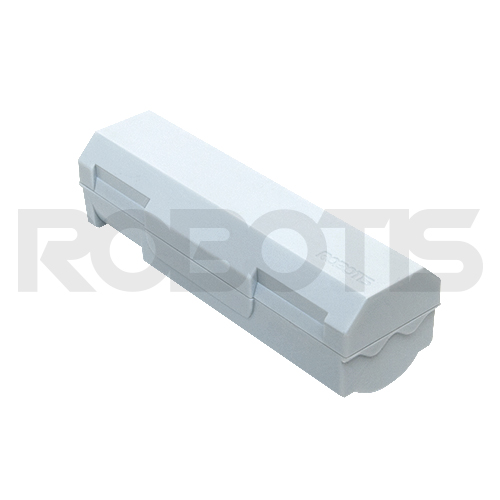

Li-ion Battery 3.7V 1300mAh LB-041

$17.00 ex. GST ($18.70 inc. GST - only Aust. customers are charged GST)

SKU: 903-0220-001 Categories: , , , , Tags: , ,

Description

■  Description

  • Lithium-ion rechargeable battery.
  • PCM is incorporated to protect the battery from overcharge, discharge, and excessive current.
  • Battery cover (blue) included for safety.

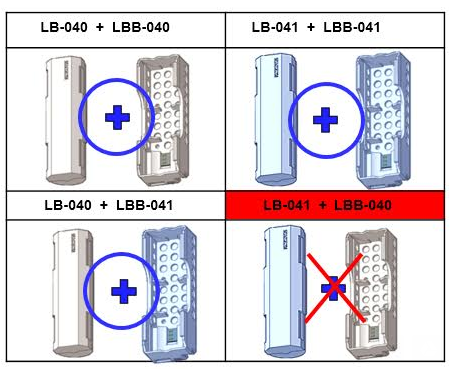

* LBB-040 (Old Li-ion battery charger) has been discontinued. LB-040 (Old Li-ion battery) can be recharged with LBB-041 (New Li-ion battery charger).



■  Package Contents

Description

Quantity

Battery

Li-ion Battery 3.7V 1300mAh LB-041

1



■  Compatible Products

  • Controller : CM-150, OpenCM9.04
  • Battery Charger : Li-ion Battery Charger Set LBB-041
  • This battery can NOT be connected directly to the controller. You will need the Li-ion Battery Charger Set LBB-041 to connect to the controller (robot).

Specifications

■  Specifications

Weight

50g

Size

24mm x 70mm x 27mm

Voltage

3.7V

Capacity

1300mAh

Etc.

Cell type Li-ion 18650

PCM built-in (overcharge, discharge, excessive current protection)



Cautions

* Li-ion Battery 3.7V 1300mAh LB-041 has a warranty period of 6 months.



■  Cautions

  • Do not charge the battery while the battery is connected to the robot.
  • Do not drop or give impact.
  • Do not apply heat, water or any other liquid on the battery.
  • Do not place in the microwave, washing machine or dryer.
  • Do not use damaged batteries (inflated, deformed, damaged, etc.).
  • Do not short circuit the polarity.
  • Do not take the battery apart.
  • When charging, make sure the battery is connected into the correct polarity.
  • Do not charge when the battery is hot. Please charge after it has cooled off.
  • Do not keep the battery connected to the controller when not in use.



■  Storage

  • Detach the battery from the robot or controller when storing away.
  • When storing away the battery for a long time, make sure the battery life is around 50%.
  • Do not store it in wet or hot places.
