Description
■ Description
The EPX540-BR101 is an optional horn for the DYNAMIXEL XM/XH/XD540 series.
The horn connected to the output shaft distributes radial load and minimizes wear.

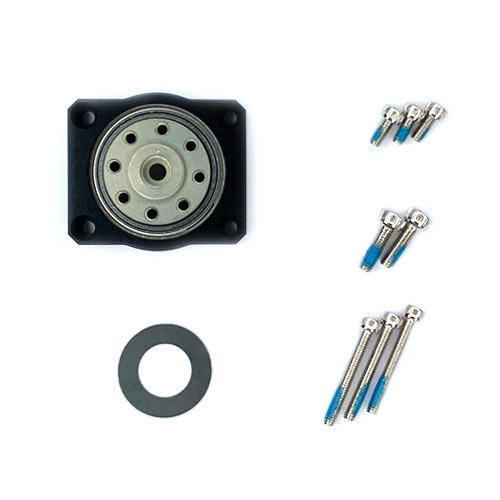

■ Package Contents
| Item Name | Quantity | Description |
|---|---|---|
| EPX540-BR101 | 1 | Horn for output shaft |
| Wrench Bolt (WB M2.5×20) | 3 | Bolts for upper part assembly |
| Wrench Bolt (WB M2.5×6) | 3 | Bolts for lower part assembly |
| Wrench Bolt (WB M3x10) | 2 | Bolts for horn-shaft assembly |
| Thrust washer | 1 | Washer for preventing rotational friction |

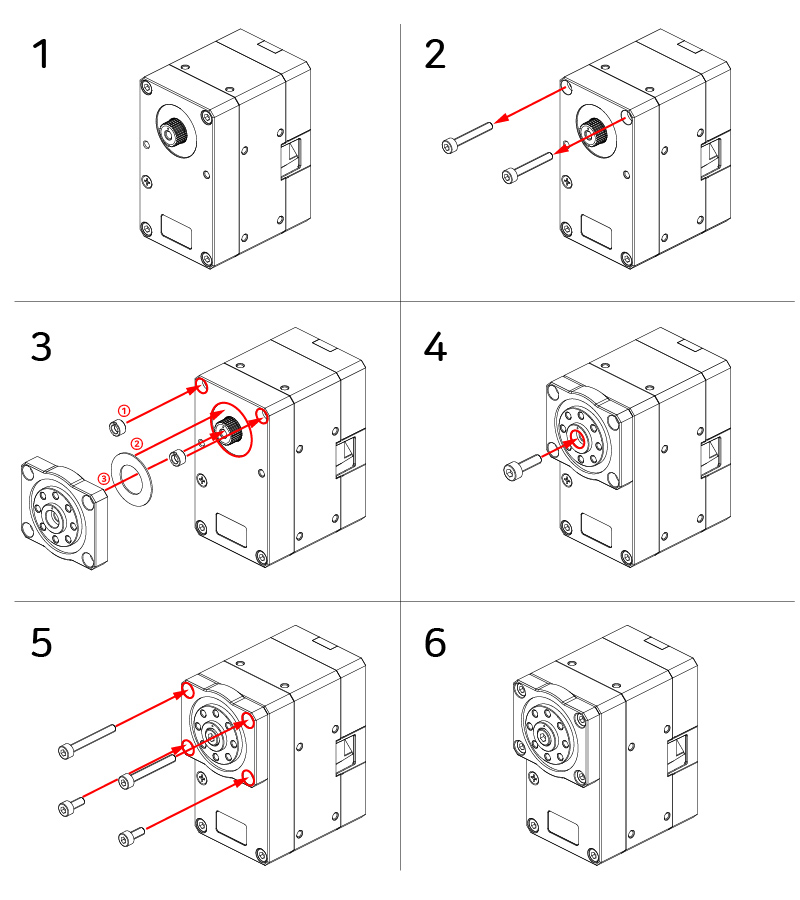

■ How to Assemble
Please be sure to check the assembly instruction below before use.
