| The DYD is built to order and requires a 8-week lead time.
The DYNAMIXEL DRIVE (DYD) is a high precision cycloid gear reducer with superior impact resistance. Generally, a traditional Cycloidal Gear Drive is well known as being strong but larger in size and heavier compared to the Harmonic Drive. However, unlike traditional Cycloid Drives, ROBOTIS’s DYNAMIXEL DRIVE (DYD) achieves high torque and accurate repeatability at the same time while being more compact, lighter, and stronger over other reducers in the market.

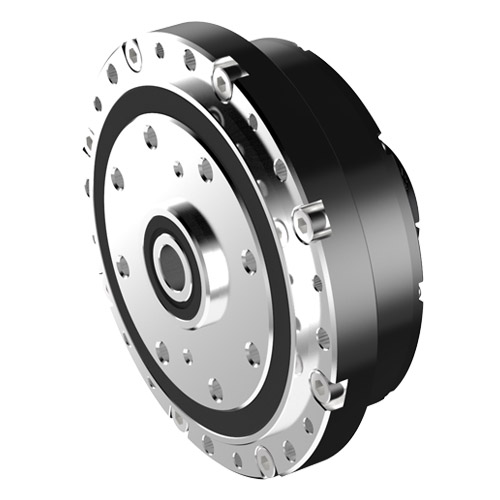

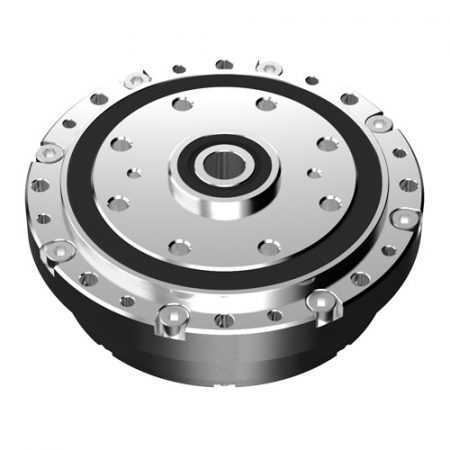

The DYD-17-051, especially, features the hollow shaft structure in a ∅78mm body with the gear ratio of 51 and provides the repeatable peak torque of 55 Nm.
- High Durability and Strong Rigidity
- High Impact Resistance
- High Precision
- Variable Gear Ratio

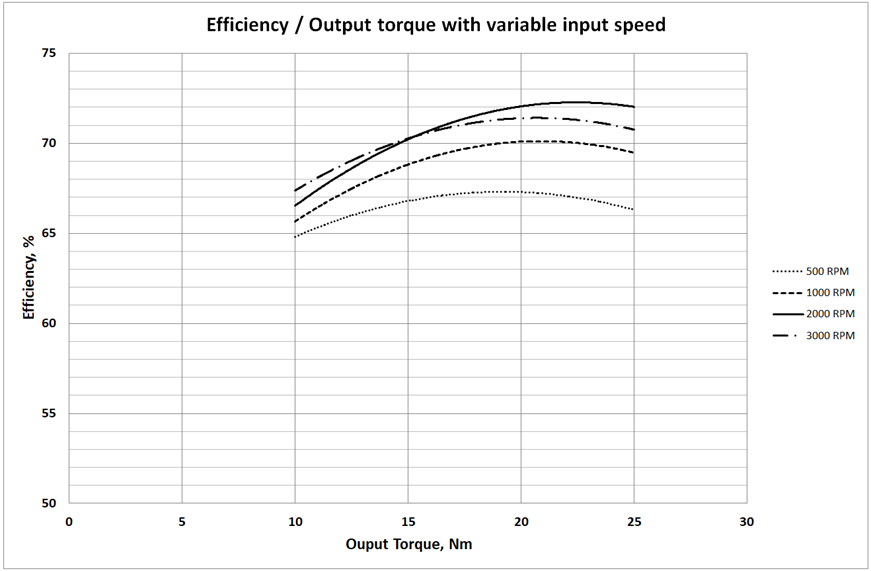

- High Efficiency & Low Backlash
- Lightweight & Compact Gear Module
■ Why Choose DYNAMIXEL DRIVE (DYD)?
|Rigidity under impact (shock)||O||△||◎|
|Operating time to failure under heavy operating condition||O||△||◎|
■ Make It Fit Right into Your Motors
2 different input shaft options are available for you to choose according to the motors you use.
■ Take a Glance at All DYD Models
|Repeatable peak torque||Nm||8.5||17.0||24.0||35.0||55.0||80.0|
|Rated output torque
|Maximum input speed||rpm||6,000||6,000||6,000||6,000||6,000||6,000|
|Average input speed||rpm||2,000||2,000||2,000||2,000||2,000||2,000|
|Hysteresis loss / Backlash||arcmin||<3.0||<3.0||<3.0||<3.0||<3.0||<3.0|
|Dimension||mm||43 x 43 x 23.65||43 x 43 x 23.65||ø68 x 30||ø68 x 30||ø78 x 34.2||ø78 x 34.2|
